Product information

TMC-7200 Engineered Fluid is a drop in miscible replacement for 3M Novec 7200 offering identical chemistry and physical properties.



The low surface tension and low viscosity of TMC-7200 fluid make it ideal for use in vapor degreasing, and cold cleaning applications.  In addition, its chemical and thermal stability, non flammability, and low toxicity make it useful for other industrial applications such as specialty solvent and heat transfer applications. TMC-7200 fluid has a higher boiling point than most CFCs, HCFCs, and HFCs, reducing evaporative losses.



APPLICATIONS

  • CFC, HCFC, HFC, and PFC replacement agent
  • Lubricant carrier, Fluorocarbons, Hydrocarbons and Silicones
  • Cold cleaner (flex circuits, wipe solvent)
  • Cleaning and rinsing agent for vapor-degreasing
  • Specialty solvents, dispersion medium, reaction medium, extraction solvent
  • Heat Transfer Fluid
  • Light-duty cleaning (neat)–particulates, fluorolubes, light oils, fluoropolymers



PHYSICAL PROPERTIES COMPARISON

 PROPERTY UNITS 3M Novec 7200 TMC-7200
Type
Virgin Replacement
Form
Liquid Liquid
Color
Colorless Colorless
Odor
Odorless Odorless
Boiling Point °C 76 76
Pour Point °C -138 -138
Density  kg/m3 1420 1430
Kinematic Viscosity cSt 0.41 0.41
Vapor Pressure psi 2.3 2.3
Specific Heat J/kg-K 1220 1220
Latent Heat of Vaporization J/g 119 119
Coefficient of Thermal Expansion 1/°C 0.0016 0.0016
Thermal Conductivity W/m-K 0.069 0.069
Dielectric Strength kV >25 >25
Average Molecular Weight g/mol 264 264
Solubility of Solvent in Water ppmw <20 <20
Ozone Depletion Potential (ODP)
0 0
Global Warming Potential (GWP)
57 59





PERFORMANCE

PROPERTY METHOD RESULT
Thermal Conductivity (@ 25°C) ASTM D 2717 0.075 W/m.K
Kinematic Viscosity (@ 25°C) ASTM D 445.a 0.47 cSt
Kinematic Viscosity (@ -20°C) ASTM D 445.a 0.81 cSt
Kinematic Viscosity (@ 0°C) ASTM D 445.a 0.63 cSt
Relative Density (@ 25°C) ASTM D 4052 1.4243 g/cm3
Vapor Pressure (@100°F) ASTM D 2879 3.424 psia
Dynamic Viscosity (@ 40°C) ASTM D 7042 0.561 cP
Dynamic Viscosity (@ 100°C) ASTM D 7042 0.338 cP
Residue by Evaporation In-House <10 μg/mL
Pour Point ASTM D 97 <-100°F


MATERIAL COMPATIBILITY

TMC-7200 fluid is compatible with most metals and hard polymers. Soft and elastomeric materials should be limited to compounds that contain the least amount of extractable plasticizer.



PACKAGING

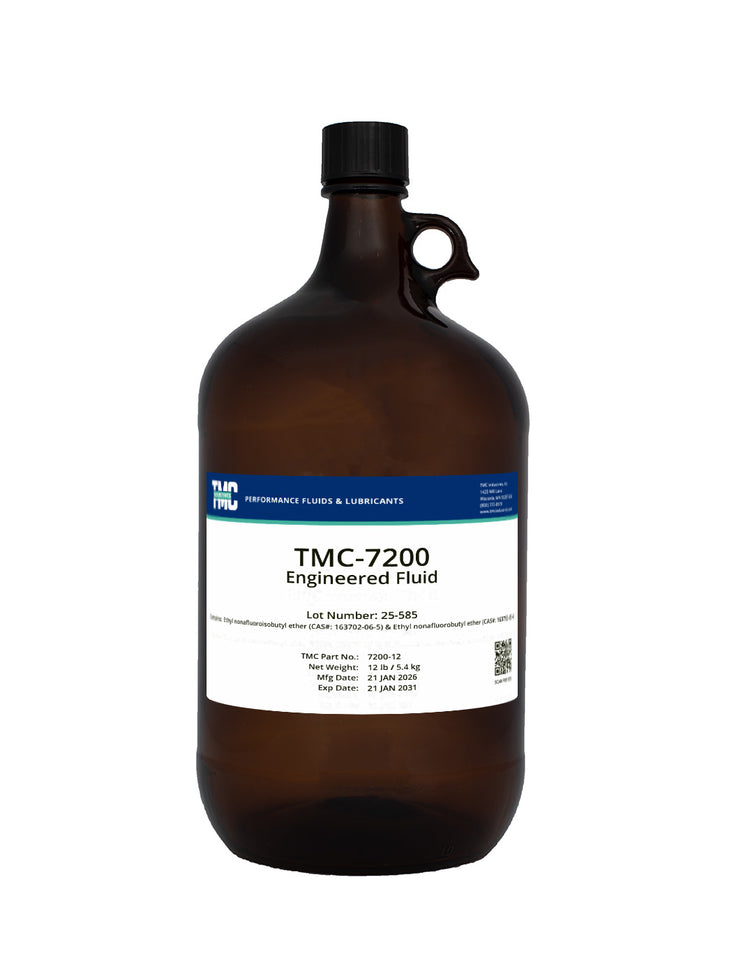

  • 1 Gallon Jug (11lb/55kg)

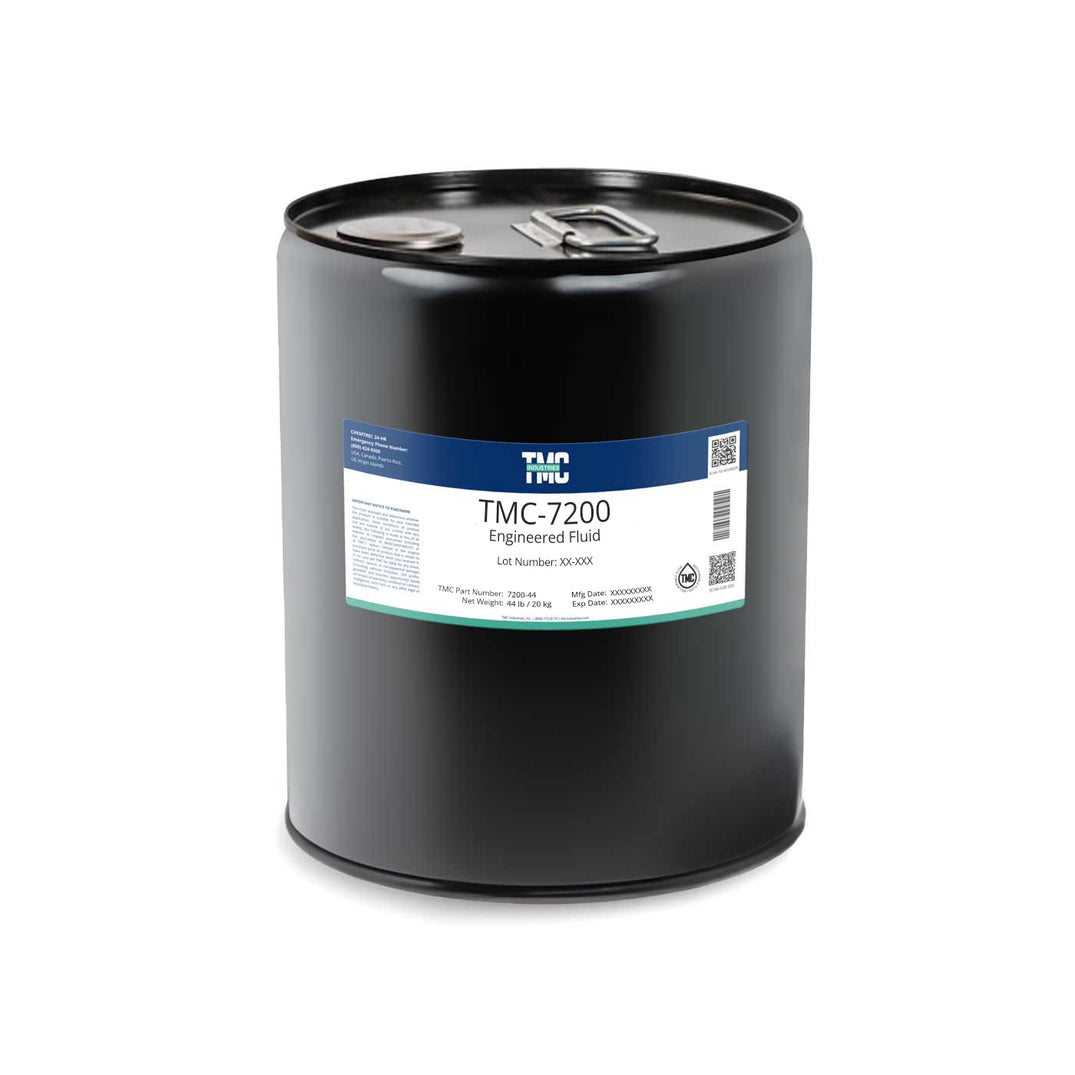

  • 5 Gallon Pail (44lb/20kg)

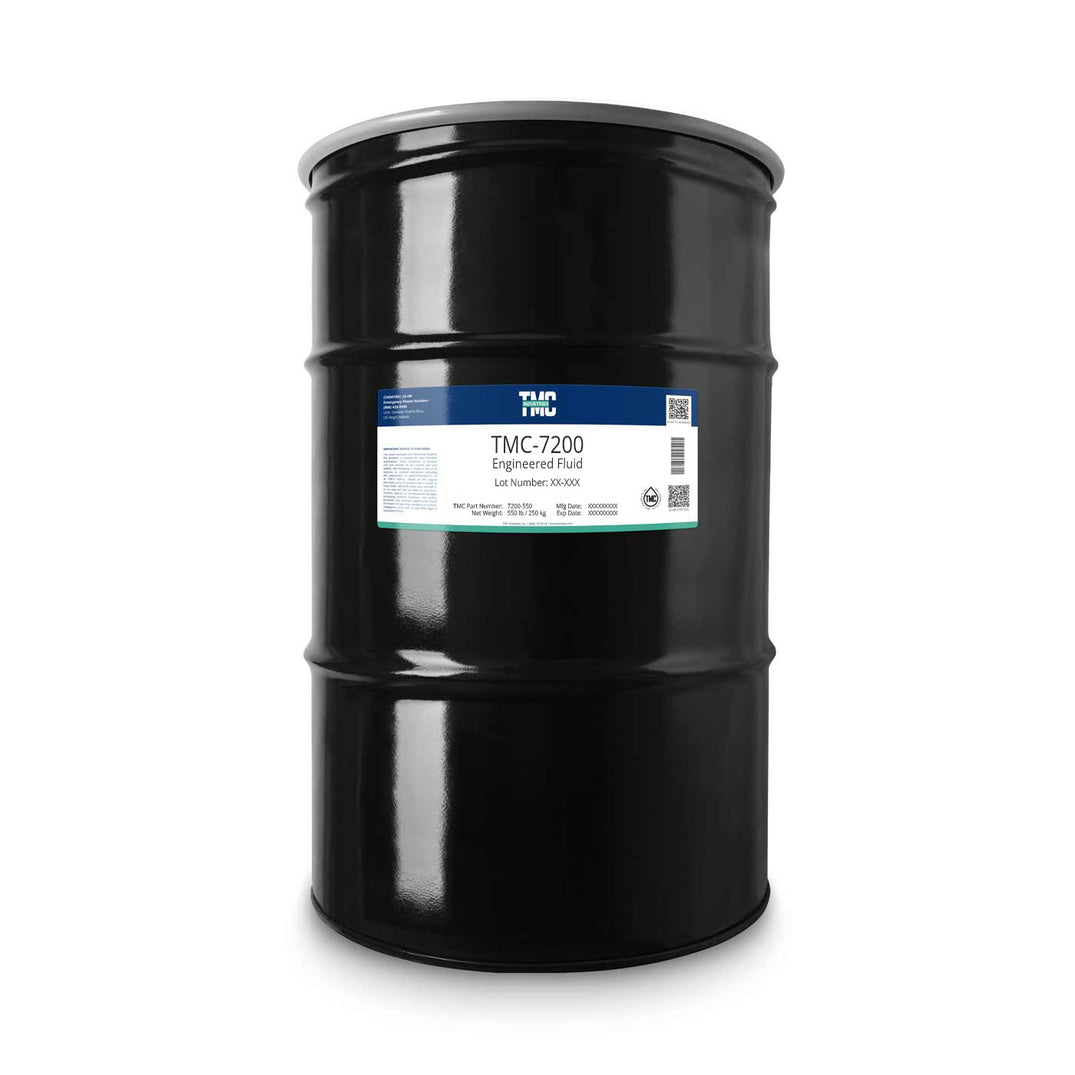

  • 55 Gallon Drum (550lb/250kg)
  • 275 Gallon Tote - Available Upon Request



SHELF LIFE & STORAGE

Shelf life is 60 months from the date of manufacture when stored in the original packaging materials and stored under normal conditions.  TMC will re-certify material every 5 years up to 20 years.



COMPLIANCE

  • Entry 68 of Regulation (EU) 2021/1297 amending Annex XVII of REACH Regulation (EC) No 1907/2006



DISPOSAL AND RECYCLING

This fluid can be recycled and reused.  Help protect the environment, and don't pay for expensive disposal services.  TMC Industries can reclaim your used fluorinated fluids, restoring them to like-new condition, and save you up to 50% in replacement fluids while protecting the environment, or TMC will recycle your fluid free of charge (conditions apply).

TMC Reclaimed Fluids are tested to meet new product specifications.  It will be clear and odorless, and a Certificate of Analysis is issued with every order.

TMC Industries offers a 100% satisfaction guarantee on all of our reclaimed fluids.  We back this up with a no questions asked refund policy.  To learn more, click HERE.



DOCUMENTS

SGS Laboratory Report - TMC-7200 - Non Detectable PFAS

TMC Performance Fluids Brochure

TMC Used Fluid Reclamation Service Brochure

Product information

TMC-7200 Engineered Fluid is a drop in miscible replacement for 3M Novec 7200 offering identical chemistry and physical properties.



The low surface tension and low viscosity of TMC-7200 fluid make it ideal for use in vapor degreasing, and cold cleaning applications.  In addition, its chemical and thermal stability, non flammability, and low toxicity make it useful for other industrial applications such as specialty solvent and heat transfer applications. TMC-7200 fluid has a higher boiling point than most CFCs, HCFCs, and HFCs, reducing evaporative losses.



APPLICATIONS

  • CFC, HCFC, HFC, and PFC replacement agent
  • Lubricant carrier, Fluorocarbons, Hydrocarbons and Silicones
  • Cold cleaner (flex circuits, wipe solvent)
  • Cleaning and rinsing agent for vapor-degreasing
  • Specialty solvents, dispersion medium, reaction medium, extraction solvent
  • Heat Transfer Fluid
  • Light-duty cleaning (neat)–particulates, fluorolubes, light oils, fluoropolymers



PHYSICAL PROPERTIES COMPARISON

 PROPERTY UNITS 3M Novec 7200 TMC-7200
Type
Virgin Replacement
Form
Liquid Liquid
Color
Colorless Colorless
Odor
Odorless Odorless
Boiling Point °C 76 76
Pour Point °C -138 -138
Density  kg/m3 1420 1430
Kinematic Viscosity cSt 0.41 0.41
Vapor Pressure psi 2.3 2.3
Specific Heat J/kg-K 1220 1220
Latent Heat of Vaporization J/g 119 119
Coefficient of Thermal Expansion 1/°C 0.0016 0.0016
Thermal Conductivity W/m-K 0.069 0.069
Dielectric Strength kV >25 >25
Average Molecular Weight g/mol 264 264
Solubility of Solvent in Water ppmw <20 <20
Ozone Depletion Potential (ODP)
0 0
Global Warming Potential (GWP)
57 59





PERFORMANCE

PROPERTY METHOD RESULT
Thermal Conductivity (@ 25°C) ASTM D 2717 0.075 W/m.K
Kinematic Viscosity (@ 25°C) ASTM D 445.a 0.47 cSt
Kinematic Viscosity (@ -20°C) ASTM D 445.a 0.81 cSt
Kinematic Viscosity (@ 0°C) ASTM D 445.a 0.63 cSt
Relative Density (@ 25°C) ASTM D 4052 1.4243 g/cm3
Vapor Pressure (@100°F) ASTM D 2879 3.424 psia
Dynamic Viscosity (@ 40°C) ASTM D 7042 0.561 cP
Dynamic Viscosity (@ 100°C) ASTM D 7042 0.338 cP
Residue by Evaporation In-House <10 μg/mL
Pour Point ASTM D 97 <-100°F


MATERIAL COMPATIBILITY

TMC-7200 fluid is compatible with most metals and hard polymers. Soft and elastomeric materials should be limited to compounds that contain the least amount of extractable plasticizer.



PACKAGING

  • 1 Gallon Jug (11lb/55kg)
  • 5 Gallon Pail (44lb/20kg)
  • 55 Gallon Drum (550lb/250kg)
  • 275 Gallon Tote - Available Upon Request



SHELF LIFE & STORAGE

Shelf life is 60 months from the date of manufacture when stored in the original packaging materials and stored under normal conditions.  TMC will re-certify material every 5 years up to 20 years.



COMPLIANCE

  • Entry 68 of Regulation (EU) 2021/1297 amending Annex XVII of REACH Regulation (EC) No 1907/2006



DISPOSAL AND RECYCLING

This fluid can be recycled and reused.  Help protect the environment, and don't pay for expensive disposal services.  TMC Industries can reclaim your used fluorinated fluids, restoring them to like-new condition, and save you up to 50% in replacement fluids while protecting the environment, or TMC will recycle your fluid free of charge (conditions apply).

TMC Reclaimed Fluids are tested to meet new product specifications.  It will be clear and odorless, and a Certificate of Analysis is issued with every order.

TMC Industries offers a 100% satisfaction guarantee on all of our reclaimed fluids.  We back this up with a no questions asked refund policy.  To learn more, click HERE.



DOCUMENTS

SGS Laboratory Report - TMC-7200 - Non Detectable PFAS

TMC Performance Fluids Brochure

TMC Used Fluid Reclamation Service Brochure

TMC™ by TMC™

TMC-7200 ENGINEERED FLUID

Translation missing: en.products.product.sku:7200-12

Regular price
$525.94
Sale price
$525.94
Regular price
3M™ Novec™ 7200 Replacement **Passed 3rd Party Laboratory Testing: Non Detectable PFAS
3M™ Novec™ 7200 Replacement **Passed 3rd Party Laboratory Testing: Non Detectable PFAS
Size:
Shipping
Consider any shipping or transit time offered to you by the carrier as an estimate.
Returns
Return most new, unopened items within 30 days of delivery for a refund minus restocking fee.

TMC Industries can reclaim your used fluids/solvents/oils, restoring them to like new condition. Our reclamation process typically achieves 99% purity.

Contact us for more details.

Brand & Series: TMC-7200
Manufacturer P/N: 7200
CAS#: 163702-06-5 & 163702-05-4
HS#: 2909.19
Schedule B#: 2909.19.0000
MIL-SPEC: N/A
ECCN#:EAR99
EC/List#: 639-027-3
UFI#: N/A
Index#: N/A
EU-REACH#: In Progress
K-REACH#: In Progress
Trade Description: Professional Use - Fluorinated Heat Transfer Fluid used in manufacturing
Country of Origin: China
