About
TMC-49 Electronic Liquid is a two-phased coolant aimed at data centers and electronic products for immersion cooling because of its prominent thermal stability and excellent efficacy of heat radiation. TMC-49 is non-flammable, insoluble in water, and not hazardous to human health. TMC-49 is a hydrofluoroolefin (HFO) dielectric fluid with zero ozone depletion potential (ODP) and a very low GWP of 20.
- No Flash Point
- Non-Flammable
- ODP of 0
- GWP of 20
APPLICATIONS:
- Heat Transfer Agent for Companies like Data Mining
- Two-Phase Coolant
- Data Centers
- Supercomputing Centers
- Energy Storage Power Centers
- Cleaning agent for electronic products or electric parts
PHYSICAL PROPERTIES
|
Appearance |
Colorless transparent liquid |
|
Purity |
99.0% |
|
Water Content |
£100ppm |
|
Molecular Weight |
300.05 |
|
Boiling Point |
47°C |
|
Flash Point |
None |
|
Pour Point |
115°C |
|
Dielectric Constant |
1.88 |
|
Dielectric Strength |
43.4 kV |
|
Freezing Point |
-80°C |
|
Latent Heat of Vaporization |
93.22 kJ kg-1 |
|
Vapor Pressure (20°C) |
36 kPa |
|
Kinetic Viscosity (25°C) |
0.373 cst |
|
Critical Temperature |
443.3 K |
|
Critical Pressure |
2.205 kPa |
|
Liquid Density (25°C) |
1.6 g/cm3 |
|
Liquid Viscosity (25°C) |
0.3562 mm2/s |
|
Surface Tension (25°C) |
11.44 mN/m |
|
Liquid Thermal Conductivity at (25°C) |
0.0609 W·m-1.K-1 |
|
Volume Resistivity |
3.070x10^15 Ω.mm |
|
Auto Ignition Temp |
N/A (not flammable) |
|
Ozone Depletion (ODP) |
0 |
|
Global Warming Potential (GWP) |
20 |
PERFORMANCE
|
Parameter |
Results |
|
Vapor Pressure at Saturation Temperature, ASTM E 1719, psia |
14.73 |
|
Viscosity, Kinematic, at 16°C, ASTM D 445.a, cSt |
0.395 |
|
Viscosity, Kinematic, at 18°C, ASTM D 445.a, cSt |
0.387 |
|
Viscosity, Kinematic, at 21°C, ASTM D 445.a, cSt |
0.376 |
|
Viscosity, Kinematic, at 24°C, ASTM D 445.a, cSt |
0.365 |
|
Viscosity, Kinematic, at 27°C, ASTM D 445.a, cSt |
0.354 |
|
Viscosity, Kinematic, at 29°C, ASTM D 445.a, cSt |
0.348 |
|
Viscosity, Kinematic, at 32°C, ASTM D 445.a, cSt |
0.338 |
|
Viscosity, Kinematic, at 35°C, ASTM D 445.a, cSt |
0.328 |
|
Viscosity, Kinematic, at 40°C, ASTM D 445.a, cSt |
0.312 |
|
Viscosity, Kinematic, at 45°C, ASTM D 445.a, cSt |
0.297 |
|
Density of Liquids by Digital Density Meter @ 16°C, Density, ASTM D 4052, g/cm³ |
1.6313 |
|
Density of Liquids by Digital Density Meter @ 21°C, Density, ASTM D 4052, g/cm³ |
1.6142 |
|
Density of Liquids by Digital Density Meter @ 27°C, Density, ASTM D 4052, g/cm³ |
1.5969 |
|
Density of Liquids by Digital Density Meter @ 32°C, Density, ASTM D 4052, g/cm³ |
1.5790 |
|
Density of Liquids by Digital Density Meter @ 35°C, Density, ASTM D 4052, g/cm³ |
1.5702 |
|
Density of Liquids by Digital Density Meter @ 38°C, Density, ASTM D 4052, g/cm³ |
1.5610 |
|
Density of Liquids by Digital Density Meter @ 40°C, Density, ASTM D 4052, g/cm³ |
1.5515 |
|
Density of Liquids by Digital Density Meter @ 43°C, Density, ASTM D 4052, g/cm³ |
1.5427 |
|
Density of Liquids by Digital Density Meter @ 46°C, Density, ASTM D 4052, g/cm³ |
1.5336 |
|
Density of Liquids by Digital Density Meter @ 49°C, Density, ASTM D 4052, g/cm³ |
1.5241 |
MATERIAL COMPATIBLITY
Compatible Materials
| Metals | Aluminum (Al) |
| Copper (Cu) | |
| Zinc (Zn) | |
| Gold (Au) | |
| Nickel (Ni) | |
| Alloys (Au/Sn/Ni) | |
| Stainless Steel (304L, 316L) | |
| Lead Tin Alloy | |
| White Copper | |
| Purple Copper | |
| Brass | |
| Titanium | |
| Plastic (plasticizer less than 5%) | Polyethylene (PE) |
| Fiberglass Board | |
| Polystyrene (PS) | |
| Polyimide (PI) | |
| Polyester (PET, PBT) | |
| Nylon (PA66, PA9T, NA66) |
|
| Polyether Sulfone (PES) | |
| Polytetrafluoroethylene (PTFE) | |
| Liquid Crystal Polymer (LCP) | |
| Polylactic Acid (PLA) | |
| Rubber | Silicone Rubber |
| Chloroprene Rubber (CR), | |
| Chlorosulfonated Polyethylene (Heparin, CSM) |
|
| Adhesives | UV adhesive |
| SR adhesive | |
| Thread Fastener Adhesive | |
| Bare Wire Adhesive | |
| ABS Adhesive Material | |
| Other | Epoxy Resin (EO) |
| ABS Resin |
Incompatible Materials
| Alkali Metals | Lithium (Li) |
| Sodium (Na) | |
| Potassium (K) | |
| Rubidium (Ru) | |
| Cesium (Se) | |
| Alkaline earth metals: | Beryllium (Be) |
| Magnesium (Mg) | |
| Calcium (Ca) | |
| Strontium (Sr) | |
| Barium (Ba) | |
| Material with Certain Risks: | EPDM |
| IIR | |
| NBR | |
| Hydrogenated Nitrile Rubber (HNBR) | |
| Acrylic (PMMA) | |
| Polyurethane (PU) | |
| Polyvinyl Chloride (PVC) |
|
| Polychlorinated Trifluoroethylene (PCTFE) | |
| Soft Polytetrafluoroethylene (PTFE) | |
| Plasticizer content more than 5% |
STORAGE & HANDLING
Storage and transportation requirements shall be handled as non-dangerous goods. Should be stored in a clean, ventilated, dry and below 37 ℃. Keep away from fire, heat, strong oxidizer, and food chemicals, don’t mix storage. Use appropriate labels, spill emergency treatment equipment and appropriate containment materials.
SHELF LIFE
Shelf life is 60 months from the date of manufacture when stored in the original packaging materials and stored under normal conditions. TMC will re-certify material every 5 years up to 20 years.
REGULATORY
This product is not hazardous for transportation per regulations, and is not regulated as dangerous goods. Reference Safety Data Sheet for additional information.
DISPOSAL AND RECYCLING
This fluid can be recycled and reused. Help protect the environment, and don't pay for expensive disposal services. TMC Industries can reclaim your used fluorinated fluids, restoring them to like-new condition, and save you up to 50% in replacement fluids while protecting the environment, or TMC will recycle your fluid free of charge (conditions apply).
TMC Reclaimed Fluids are tested to meet new product specifications. It will be clear and odorless, and a Certificate of Analysis is issued with every order.
TMC Industries offers a 100% satisfaction guarantee on all of our reclaimed fluids. We back this up with a no questions asked refund policy. To learn more, click HERE.
DOCUMENTS
3rd Party Laboratory Testing: Non-Detectable PFAS
TMC-49 Electronic Liquid is a two-phased coolant aimed at data centers and electronic products for immersion cooling because of its prominent thermal stability and excellent efficacy of heat radiation. TMC-49 is non-flammable, insoluble in water, and not hazardous to human health. TMC-49 is a hydrofluoroolefin (HFO) dielectric fluid with zero ozone depletion potential (ODP) and a very low GWP of 20.
- No Flash Point
- Non-Flammable
- ODP of 0
- GWP of 20
APPLICATIONS:
- Heat Transfer Agent for Companies like Data Mining
- Two-Phase Coolant
- Data Centers
- Supercomputing Centers
- Energy Storage Power Centers
- Cleaning agent for electronic products or electric parts
PHYSICAL PROPERTIES
|
Appearance |
Colorless transparent liquid |
|
Purity |
99.0% |
|
Water Content |
£100ppm |
|
Molecular Weight |
300.05 |
|
Boiling Point |
47°C |
|
Flash Point |
None |
|
Pour Point |
115°C |
|
Dielectric Constant |
1.88 |
|
Dielectric Strength |
43.4 kV |
|
Freezing Point |
-80°C |
|
Latent Heat of Vaporization |
93.22 kJ kg-1 |
|
Vapor Pressure (20°C) |
36 kPa |
|
Kinetic Viscosity (25°C) |
0.373 cst |
|
Critical Temperature |
443.3 K |
|
Critical Pressure |
2.205 kPa |
|
Liquid Density (25°C) |
1.6 g/cm3 |
|
Liquid Viscosity (25°C) |
0.3562 mm2/s |
|
Surface Tension (25°C) |
11.44 mN/m |
|
Liquid Thermal Conductivity at (25°C) |
0.0609 W·m-1.K-1 |
|
Volume Resistivity |
3.070x10^15 Ω.mm |
|
Auto Ignition Temp |
N/A (not flammable) |
|
Ozone Depletion (ODP) |
0 |
|
Global Warming Potential (GWP) |
20 |
PERFORMANCE
|
Parameter |
Results |
|
Vapor Pressure at Saturation Temperature, ASTM E 1719, psia |
14.73 |
|
Viscosity, Kinematic, at 16°C, ASTM D 445.a, cSt |
0.395 |
|
Viscosity, Kinematic, at 18°C, ASTM D 445.a, cSt |
0.387 |
|
Viscosity, Kinematic, at 21°C, ASTM D 445.a, cSt |
0.376 |
|
Viscosity, Kinematic, at 24°C, ASTM D 445.a, cSt |
0.365 |
|
Viscosity, Kinematic, at 27°C, ASTM D 445.a, cSt |
0.354 |
|
Viscosity, Kinematic, at 29°C, ASTM D 445.a, cSt |
0.348 |
|
Viscosity, Kinematic, at 32°C, ASTM D 445.a, cSt |
0.338 |
|
Viscosity, Kinematic, at 35°C, ASTM D 445.a, cSt |
0.328 |
|
Viscosity, Kinematic, at 40°C, ASTM D 445.a, cSt |
0.312 |
|
Viscosity, Kinematic, at 45°C, ASTM D 445.a, cSt |
0.297 |
|
Density of Liquids by Digital Density Meter @ 16°C, Density, ASTM D 4052, g/cm³ |
1.6313 |
|
Density of Liquids by Digital Density Meter @ 21°C, Density, ASTM D 4052, g/cm³ |
1.6142 |
|
Density of Liquids by Digital Density Meter @ 27°C, Density, ASTM D 4052, g/cm³ |
1.5969 |
|
Density of Liquids by Digital Density Meter @ 32°C, Density, ASTM D 4052, g/cm³ |
1.5790 |
|
Density of Liquids by Digital Density Meter @ 35°C, Density, ASTM D 4052, g/cm³ |
1.5702 |
|
Density of Liquids by Digital Density Meter @ 38°C, Density, ASTM D 4052, g/cm³ |
1.5610 |
|
Density of Liquids by Digital Density Meter @ 40°C, Density, ASTM D 4052, g/cm³ |
1.5515 |
|
Density of Liquids by Digital Density Meter @ 43°C, Density, ASTM D 4052, g/cm³ |
1.5427 |
|
Density of Liquids by Digital Density Meter @ 46°C, Density, ASTM D 4052, g/cm³ |
1.5336 |
|
Density of Liquids by Digital Density Meter @ 49°C, Density, ASTM D 4052, g/cm³ |
1.5241 |
MATERIAL COMPATIBLITY
Compatible Materials
| Metals | Aluminum (Al) |
| Copper (Cu) | |
| Zinc (Zn) | |
| Gold (Au) | |
| Nickel (Ni) | |
| Alloys (Au/Sn/Ni) | |
| Stainless Steel (304L, 316L) | |
| Lead Tin Alloy | |
| White Copper | |
| Purple Copper | |
| Brass | |
| Titanium | |
| Plastic (plasticizer less than 5%) | Polyethylene (PE) |
| Fiberglass Board | |
| Polystyrene (PS) | |
| Polyimide (PI) | |
| Polyester (PET, PBT) | |
| Nylon (PA66, PA9T, NA66) |
|
| Polyether Sulfone (PES) | |
| Polytetrafluoroethylene (PTFE) | |
| Liquid Crystal Polymer (LCP) | |
| Polylactic Acid (PLA) | |
| Rubber | Silicone Rubber |
| Chloroprene Rubber (CR), | |
| Chlorosulfonated Polyethylene (Heparin, CSM) |
|
| Adhesives | UV adhesive |
| SR adhesive | |
| Thread Fastener Adhesive | |
| Bare Wire Adhesive | |
| ABS Adhesive Material | |
| Other | Epoxy Resin (EO) |
| ABS Resin |
Incompatible Materials
| Alkali Metals | Lithium (Li) |
| Sodium (Na) | |
| Potassium (K) | |
| Rubidium (Ru) | |
| Cesium (Se) | |
| Alkaline earth metals: | Beryllium (Be) |
| Magnesium (Mg) | |
| Calcium (Ca) | |
| Strontium (Sr) | |
| Barium (Ba) | |
| Material with Certain Risks: | EPDM |
| IIR | |
| NBR | |
| Hydrogenated Nitrile Rubber (HNBR) | |
| Acrylic (PMMA) | |
| Polyurethane (PU) | |
| Polyvinyl Chloride (PVC) |
|
| Polychlorinated Trifluoroethylene (PCTFE) | |
| Soft Polytetrafluoroethylene (PTFE) | |
| Plasticizer content more than 5% |
STORAGE & HANDLING
Storage and transportation requirements shall be handled as non-dangerous goods. Should be stored in a clean, ventilated, dry and below 37 ℃. Keep away from fire, heat, strong oxidizer, and food chemicals, don’t mix storage. Use appropriate labels, spill emergency treatment equipment and appropriate containment materials.
SHELF LIFE
Shelf life is 60 months from the date of manufacture when stored in the original packaging materials and stored under normal conditions. TMC will re-certify material every 5 years up to 20 years.
REGULATORY
This product is not hazardous for transportation per regulations, and is not regulated as dangerous goods. Reference Safety Data Sheet for additional information.
DISPOSAL AND RECYCLING
This fluid can be recycled and reused. Help protect the environment, and don't pay for expensive disposal services. TMC Industries can reclaim your used fluorinated fluids, restoring them to like-new condition, and save you up to 50% in replacement fluids while protecting the environment, or TMC will recycle your fluid free of charge (conditions apply).
TMC Reclaimed Fluids are tested to meet new product specifications. It will be clear and odorless, and a Certificate of Analysis is issued with every order.
TMC Industries offers a 100% satisfaction guarantee on all of our reclaimed fluids. We back this up with a no questions asked refund policy. To learn more, click HERE.
DOCUMENTS
3rd Party Laboratory Testing: Non-Detectable PFAS

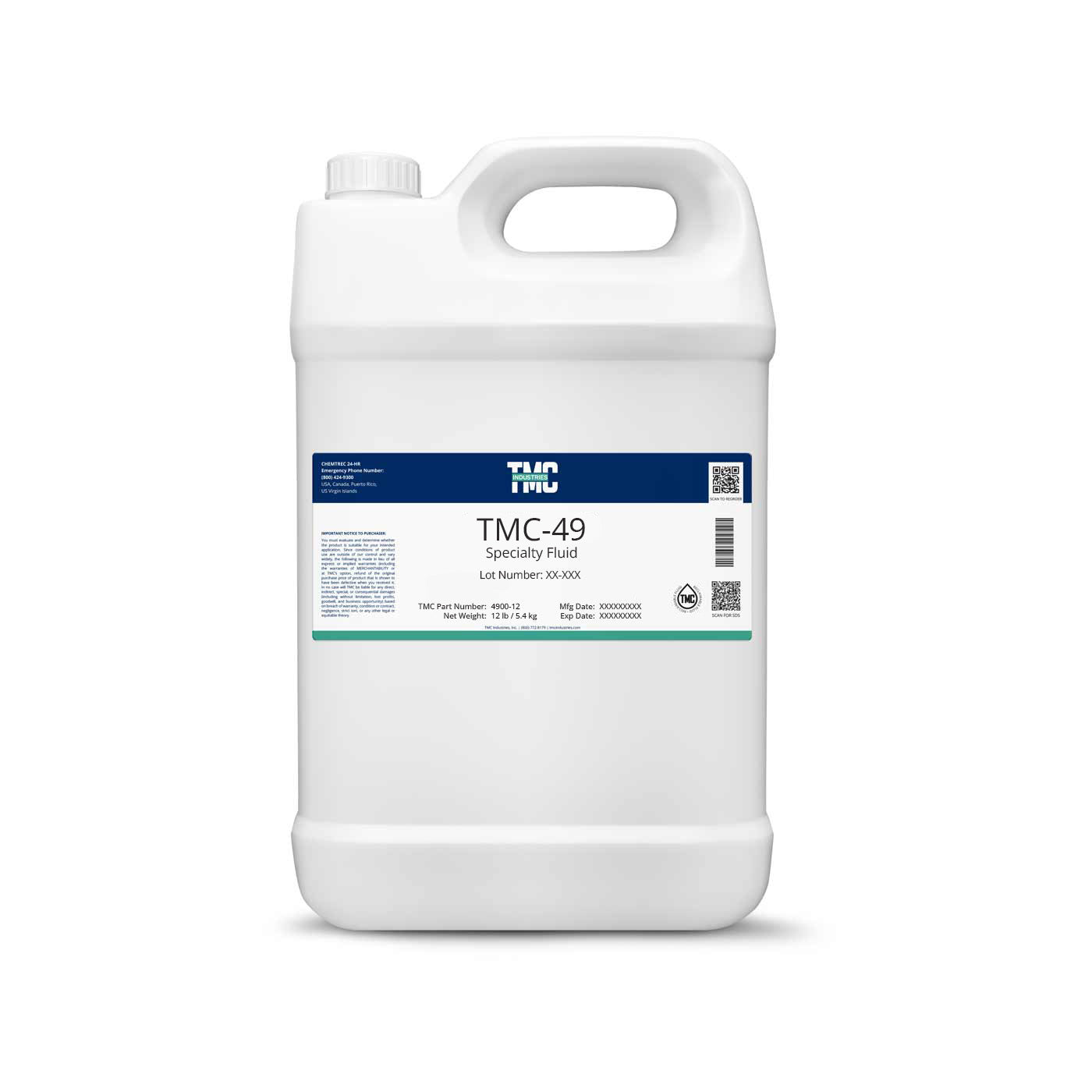

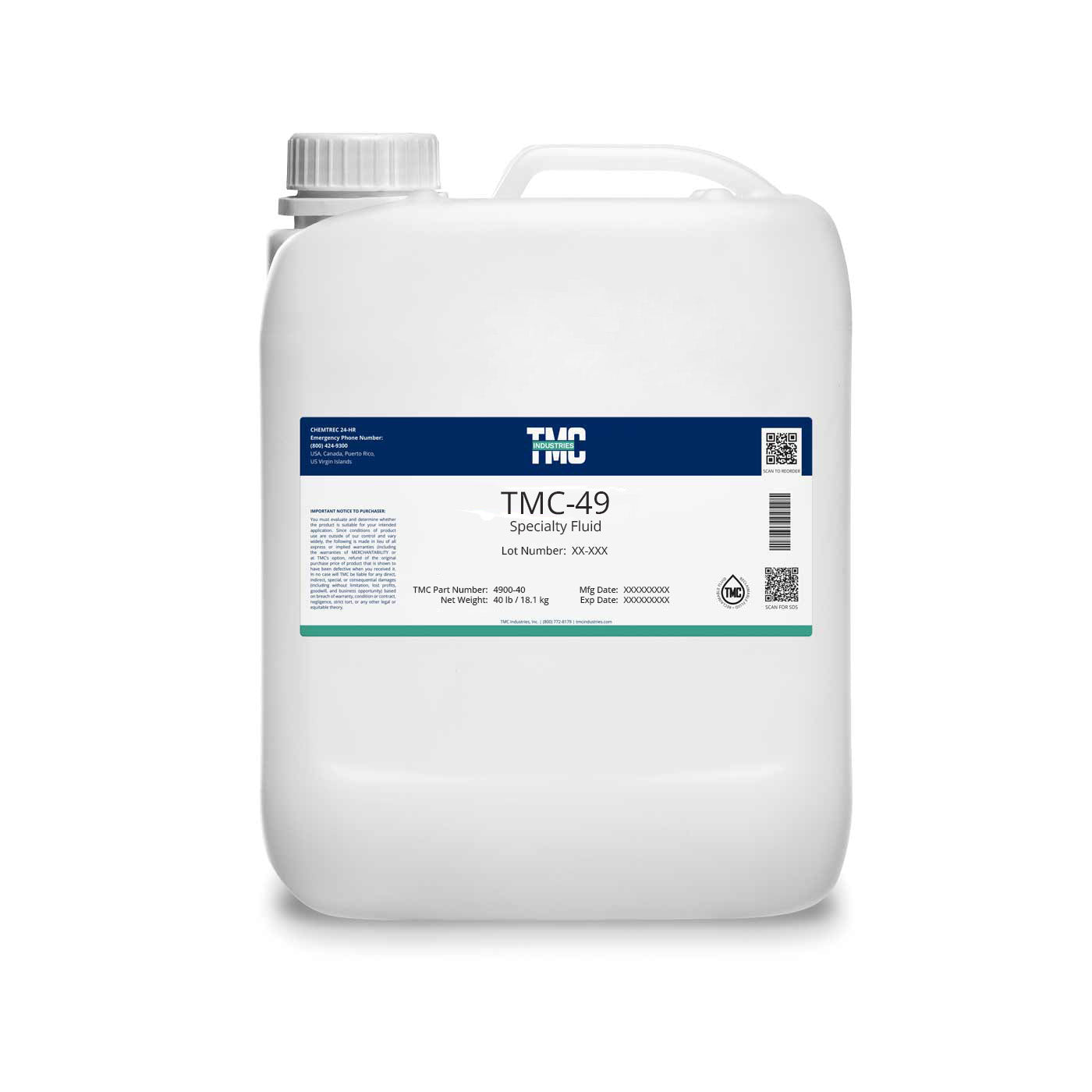

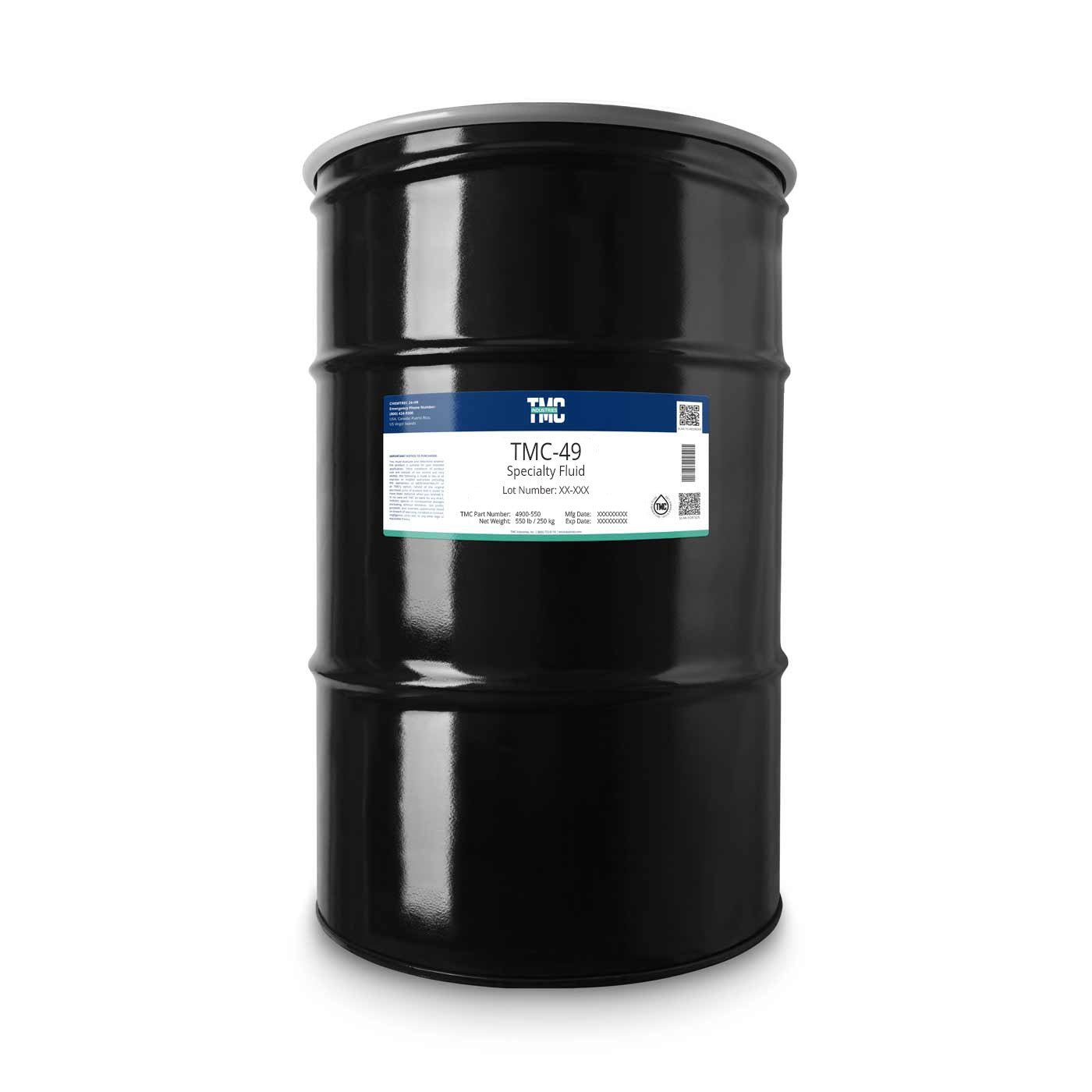

TMC-49 ELECTRONIC LIQUID
Translation missing: en.products.product.sku:4900-12
- Regular price
- $190.36
- Sale price
- $190.36
- Regular price
-
Shipping Policy
Shipping Policy
Return Policy
Return Policy
Manufacturer P/N: 4900
CAS#: 2070-70-4
HS#: 2903.78
Schedule B#: 2903.78.0090
ECCN#: EAR99 EC/List#: 671-459-8
UFI#: N/A
Index#: N/A
EU-REACH#: In Progress
K-REACH#: In Progress
Trade Description: Professional Use - 2-Phase Immersion Cooling Liquid
Country of Origin: China
