Product information

TMC-40E offers similar chemistry and physical properties as 3M FC-40.

TMC-40E is a non-conductive, thermally and chemically stable fluid ideal for single phase heat transfer fluid applications, especially in the electronics and semiconductor industry for testers, CVD and TFT manufacturing.

TMC-40E is a clear, colorless, non-conductive, non-flammable, residue free, thermally and chemically stable liquid ideal for use in many heat transfer fluid applications.  Its wide liquid range (-55 to 158 deg C) and compatibility makes it well suited for a variety of electronic single and two phase heat transfer applications, including in the semiconductor market for etchers, ion implanters, testers, CVD and TFT manufacturing. Because TMC-40E has a narrow boiling range, its composition will change little with time, this keeps fluid loss to a minimum and insures consistent transport properties.



APPLICATIONS

  • Dielectric Bath
  • Electronic Testing
  • Gross Leak Testing
  • Heat Transfer
  • Semiconductor Cooling
  • Thermal Shock Testing



PHYSICAL PROPERTIES COMPARISON

 PROPERTY UNITS 3M™ FC-40 TMC-40 TMC-40E
Type   Legacy Replacement Equivalent
Form   Liquid Liquid Liquid
Color   Colorless Colorless Colorless
Odor   Odorless Odorless Odorless
Boiling Point °C 165 165 158
Pour Point °C -57 -57 -55
Density  kg/m3 1855 1855 1820
Kinematic Viscosity cSt 2.2 2.2 3.18
Vapor Pressure psi 0.05 0.04 0.0046
Specific Heat J/kg-K 1100 1100 1509
Latent Heat of Vaporization J/g 69 69 130
Coefficient of Thermal Expansion 1/°C 0.0012 0.0012 0.0054
Thermal Conductivity W/m-K 0.065 0.065 0.092
Dielectric Strength kV 46 >40 40
Electrical Resistivity Ohm-cm 4.0 x 10-15 4.0 x 10-15 No Data
Average Molecular Weight g/mol 650 650 550
Flash Point   None None None
Ozone Depletion Potential (ODP)   0 0 0
Global Warming Potential (GWP)   >5000 6000 175



MATERIAL COMPATIBILITY

Compatible with most metals, plastics and elastomers.



COMPLIANCE

EU RoHS Directive (EU) 2015/863 amending Annex II to Directive 2011/65/EU

TMC-40E complies with EU regulation 1907/2006 REACH.



SHELF LIFE & STORAGE

Shelf life is 60 months from the date of manufacture when stored in the original packaging materials and stored under normal conditions.  TMC will re-certify material every 5 years up to 20 years.



DISPOSAL AND RECYCLING

This fluid can be recycled and reused.  Help protect the environment, and don't pay for expensive disposal services.  TMC Industries can reclaim your used fluorinated fluids, restoring them to like-new condition, and save you up to 50% in replacement fluids while protecting the environment, or TMC will recycle your fluid free of charge (conditions apply).

TMC Reclaimed Fluids are tested to meet new product specifications.  It will be clear and odorless, and a Certificate of Analysis is issued with every order.

TMC Industries offers a 100% satisfaction guarantee on all of our reclaimed fluids.  We back this up with a no questions asked refund policy.  To learn more, click HERE.



DOCUMENTS

SGS Laboratory - TMC-40E - PFAS Content Results - Passing

TMC Performance Fluids Brochure

TMC Used Fluid Reclamation Service Brochure


Product information

TMC-40E offers similar chemistry and physical properties as 3M FC-40.

TMC-40E is a non-conductive, thermally and chemically stable fluid ideal for single phase heat transfer fluid applications, especially in the electronics and semiconductor industry for testers, CVD and TFT manufacturing.

TMC-40E is a clear, colorless, non-conductive, non-flammable, residue free, thermally and chemically stable liquid ideal for use in many heat transfer fluid applications.  Its wide liquid range (-55 to 158 deg C) and compatibility makes it well suited for a variety of electronic single and two phase heat transfer applications, including in the semiconductor market for etchers, ion implanters, testers, CVD and TFT manufacturing. Because TMC-40E has a narrow boiling range, its composition will change little with time, this keeps fluid loss to a minimum and insures consistent transport properties.



APPLICATIONS

  • Dielectric Bath
  • Electronic Testing
  • Gross Leak Testing
  • Heat Transfer
  • Semiconductor Cooling
  • Thermal Shock Testing



PHYSICAL PROPERTIES COMPARISON

 PROPERTY UNITS 3M™ FC-40 TMC-40 TMC-40E
Type   Legacy Replacement Equivalent
Form   Liquid Liquid Liquid
Color   Colorless Colorless Colorless
Odor   Odorless Odorless Odorless
Boiling Point °C 165 165 158
Pour Point °C -57 -57 -55
Density  kg/m3 1855 1855 1820
Kinematic Viscosity cSt 2.2 2.2 3.18
Vapor Pressure psi 0.05 0.04 0.0046
Specific Heat J/kg-K 1100 1100 1509
Latent Heat of Vaporization J/g 69 69 130
Coefficient of Thermal Expansion 1/°C 0.0012 0.0012 0.0054
Thermal Conductivity W/m-K 0.065 0.065 0.092
Dielectric Strength kV 46 >40 40
Electrical Resistivity Ohm-cm 4.0 x 10-15 4.0 x 10-15 No Data
Average Molecular Weight g/mol 650 650 550
Flash Point   None None None
Ozone Depletion Potential (ODP)   0 0 0
Global Warming Potential (GWP)   >5000 6000 175



MATERIAL COMPATIBILITY

Compatible with most metals, plastics and elastomers.



COMPLIANCE

EU RoHS Directive (EU) 2015/863 amending Annex II to Directive 2011/65/EU

TMC-40E complies with EU regulation 1907/2006 REACH.



SHELF LIFE & STORAGE

Shelf life is 60 months from the date of manufacture when stored in the original packaging materials and stored under normal conditions.  TMC will re-certify material every 5 years up to 20 years.



DISPOSAL AND RECYCLING

This fluid can be recycled and reused.  Help protect the environment, and don't pay for expensive disposal services.  TMC Industries can reclaim your used fluorinated fluids, restoring them to like-new condition, and save you up to 50% in replacement fluids while protecting the environment, or TMC will recycle your fluid free of charge (conditions apply).

TMC Reclaimed Fluids are tested to meet new product specifications.  It will be clear and odorless, and a Certificate of Analysis is issued with every order.

TMC Industries offers a 100% satisfaction guarantee on all of our reclaimed fluids.  We back this up with a no questions asked refund policy.  To learn more, click HERE.



DOCUMENTS

SGS Laboratory - TMC-40E - PFAS Content Results - Passing

TMC Performance Fluids Brochure

TMC Used Fluid Reclamation Service Brochure


TMC™ by TMC™

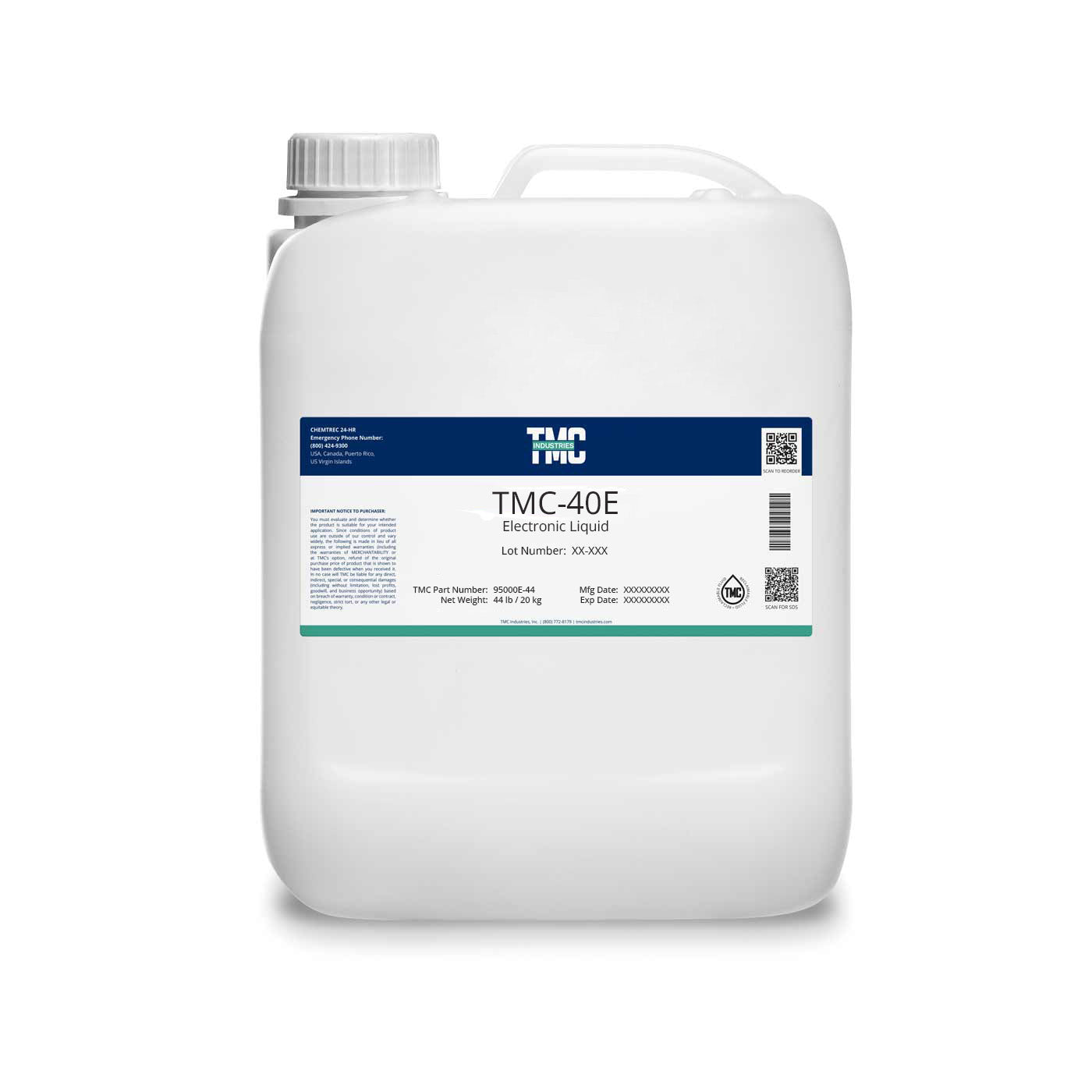

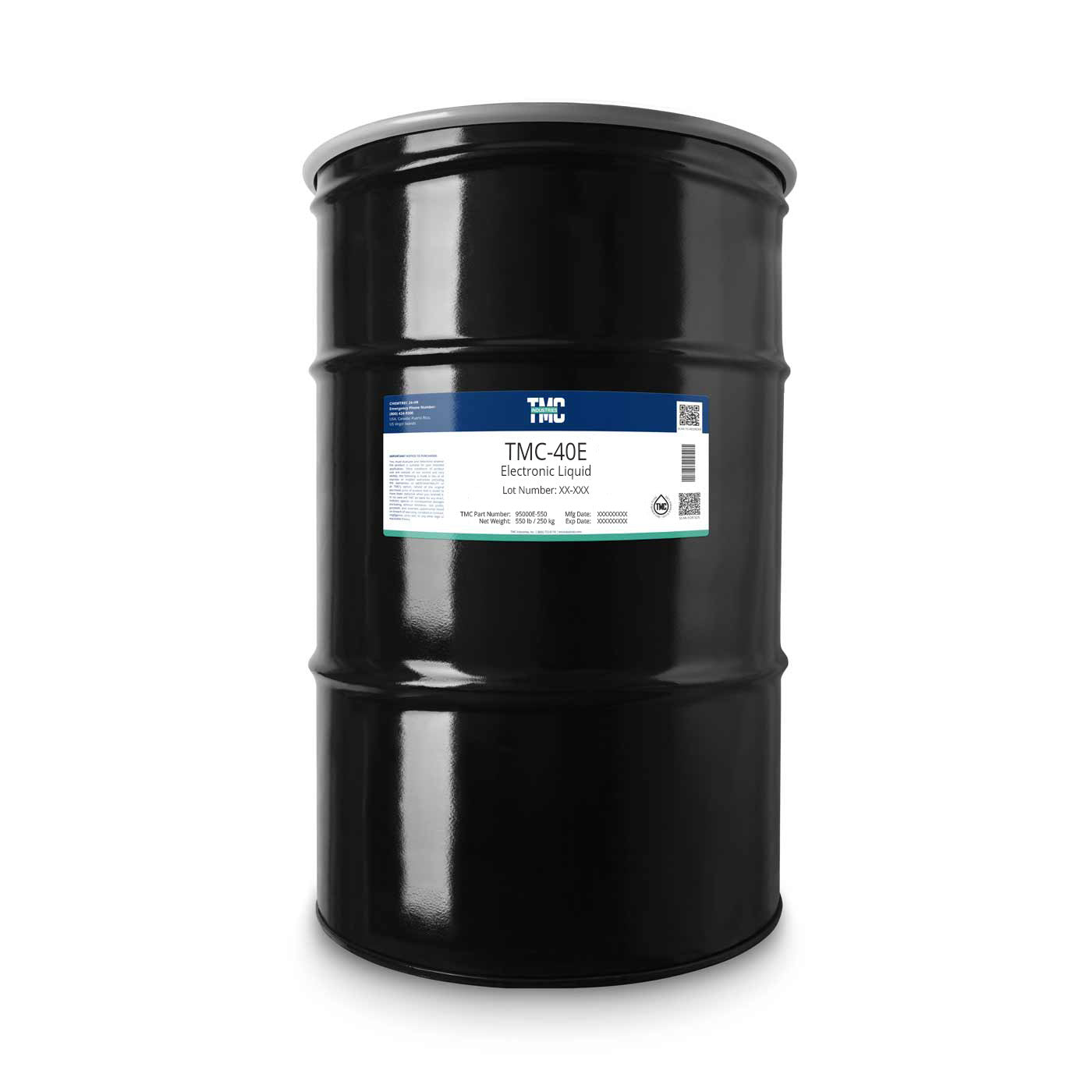

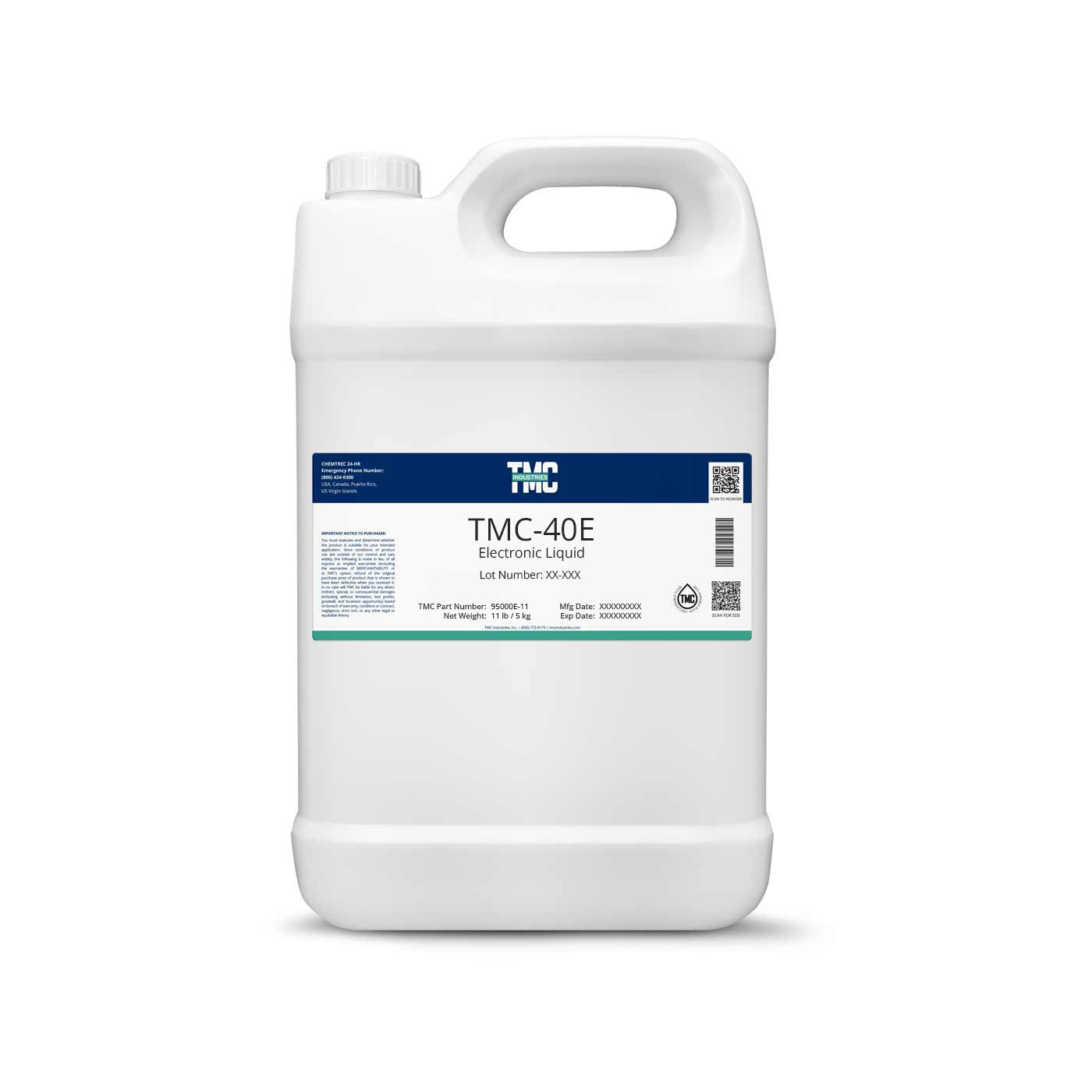

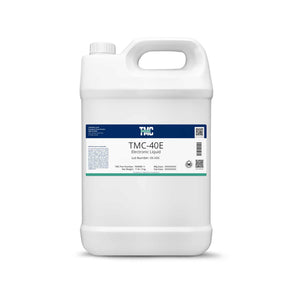

TMC-40E ELECTRONIC LIQUID

95000E-11

$568.44
$568.44
Equivalent to 3M FC-40. **Passed 3rd Party Laboratory Testing: Non Detectable PFAS**
Equivalent to 3M FC-40. **Passed 3rd Party Laboratory Testing: Non Detectable PFAS**
Size:
View Technical DatasheetView Safety DatasheetRequest Certificate of Analysis
Shipping
Consider any shipping or transit time offered to you by the carrier as an estimate.

Shipping Policy

Shipping Time -- Most domestic orders received before 2:00PM Central Time will ship the same day, provided the product ordered is in stock. Most orders received after 2:00 PM will ship the next business day. Orders are not processed or shipped on Saturday, Sunday or major US holidays. We cannot guarantee when an order will arrive. Consider any shipping or transit time offered to you by the carrier as an estimate. We encourage you to order in a timely fashion to avoid delays caused by shipping or product availability.
Returns
Return most new, unopened items within 30 days of delivery for a refund minus restocking fee.

Return Policy

You may return most new, unopened items within 30 days of delivery for a refund restocking fee. You should expect to receive your refund within four weeks of giving your package to the return shipper.. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).If you need to return an item, please contact us at (800) 772-8179. We’ll notify you via e-mail of your refund once we’ve received and processed the returned item.

TMC Industries can reclaim your used fluids/solvents/oils, restoring them to like new condition. Our reclamation process typically achieves 99% purity.

Contact us for more details.

Brand & Series: TMC-40E
Manufacturer P/N: 95000E
CAS#: 86508-42-1
HS#: 3824.90
Schedule B#: 3824.90.0000
ECCN#: EAR99
EC/List#: 617-869-2
UFI#: N/A
Index#: N/A
EU-REACH#: In Progress
K-REACH#: KE-28146
Trade Description: Professional Use - Heat Transfer Fluid used in Manufacturing
Country of Origin: China
