About

Product information

TMC-40 Electronic Liquid is a non-conductive, thermally and chemically stable fluid ideal for single phase heat transfer fluid applications, especially in the electronics and semiconductor industry for testers, CVD and TFT manufacturing.

TMC-40 is a clear, colorless, non-conductive, non-flammable, residue free, thermally and chemically stable liquid ideal for use in many heat transfer fluid applications.  Its wide liquid range (-57 to 165 deg C) and compatibility makes it well suited for a variety of electronic single and two phase heat transfer applications, including in the semiconductor market for etchers, ion implanters, testers, CVD and TFT manufacturing. Because TMC-40 has a narrow boiling range, its composition will change little with time, this keeps fluid loss to a minimum and insures consistent transport properties.



APPLICATIONS

  • Dielectric Bath
  • Electronic Testing
  • Gross Leak Testing
  • Heat Transfer
  • Semiconductor Cooling
  • Thermal Shock Testing



PHYSICAL PROPERTIES COMPARISON

 PROPERTY UNITS 3M FC-40 TMC-40 TMC-40E
Type   Virgin Replacement Equivalent
Form   Liquid Liquid Liquid
Color   Colorless Colorless Colorless
Odor   Odorless Odorless Odorless
Boiling Point °C 165 165 158
Pour Point °C -57 -57 -55
Density  kg/m3 1855 1855 1820
Kinematic Viscosity cSt 2.2 2.2 3.18
Vapor Pressure psi 0.05 0.04 0.0046
Specific Heat J/kg-K 1100 1100 1509
Latent Heat of Vaporization J/g 69 69 130
Coefficient of Thermal Expansion 1/°C 0.0012 0.0012 0.0054
Thermal Conductivity W/m-K 0.065 0.065 0.092
Dielectric Strength kV 46 >40 40
Electrical Resistivity Ohm-cm 4.0 x 10-15 4.0 x 10-15 No Data
Average Molecular Weight g/mol 650 650 550
Flash Point   None None None
Water Solubility
<10 <10
Solubility in Water ppm <5 <5
Ozone Depletion Potential (ODP)   0 0 0
Global Warming Potential (GWP)   >5000 6000 175



MATERIAL COMPATIBILITY

Compatible with most metals, plastics and elastomers.



PACKAGING

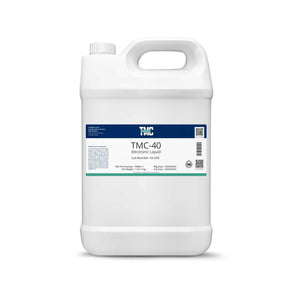

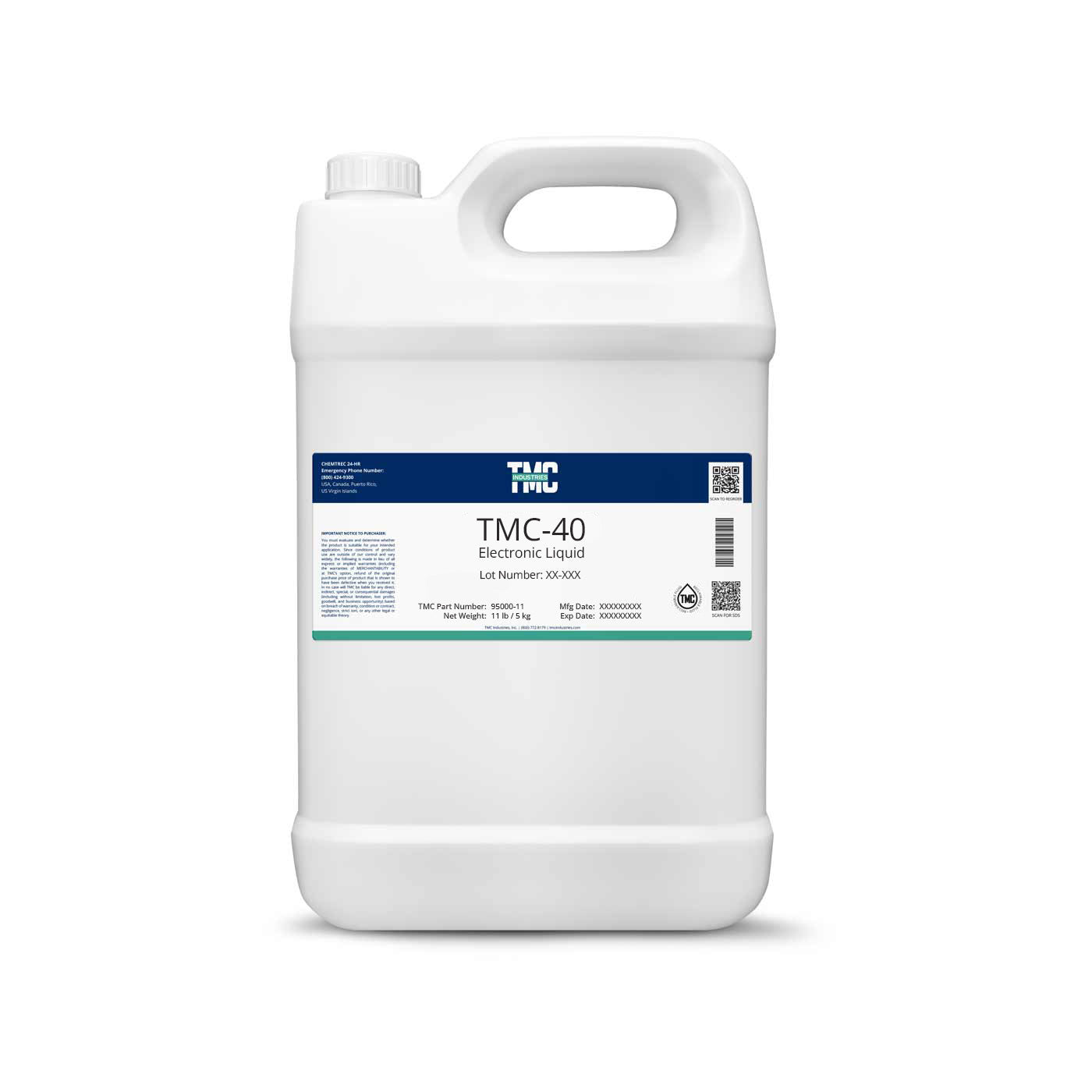

  • 1 Gallon Jug (11lb/5kg)

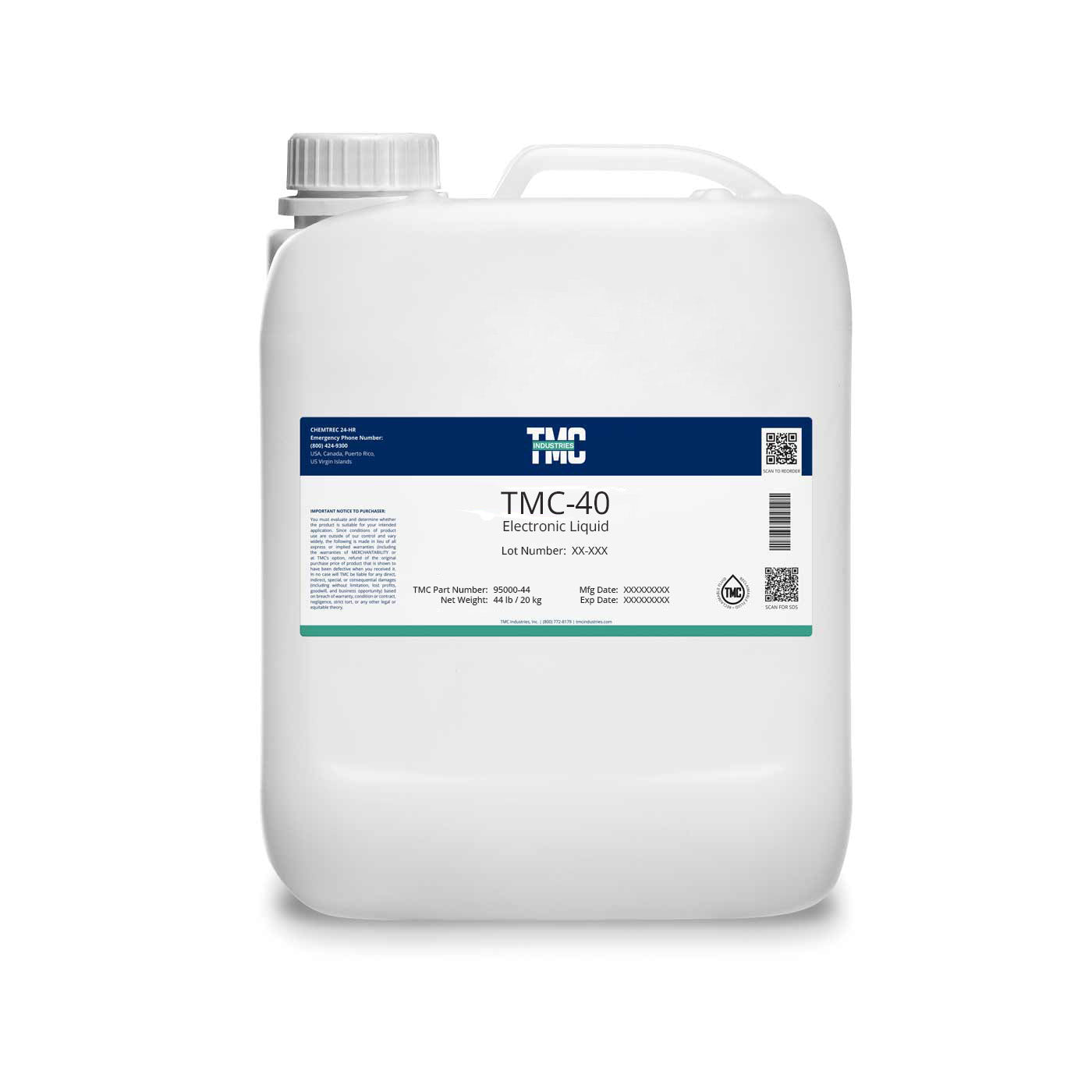

  • 5 Gallon Pail (44lb/20kg)

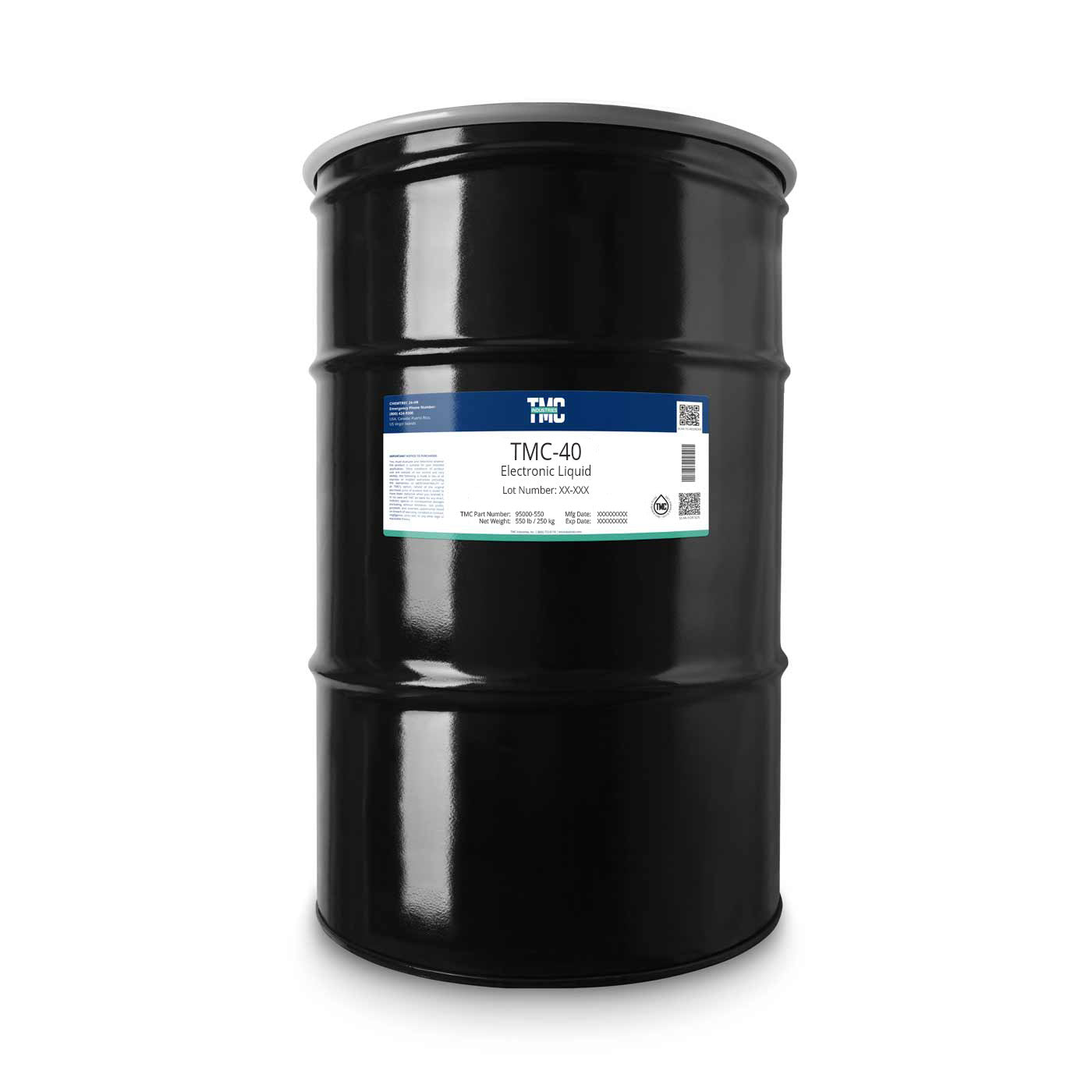

  • 55 Gallon Drum (550lb/250kg)
  • 275 Gallon Tote - Available Upon Request


DISPOSAL / RECYCLING

This fluid can be recycled and reused. Why pay for expensive disposal services, when TMC Industries can reclaim your used fluorinated fluids, restoring them to like-new condition, and saving you up to 50% in replacement fluids? TMC Industries also buys and resells used fluorinated fluids. Contact us for more details.



DOCUMENTS

TMC Performance Fluids Brochure

TMC Used Fluid Reclamation Service Brochure

Product information

TMC-40 Electronic Liquid is a non-conductive, thermally and chemically stable fluid ideal for single phase heat transfer fluid applications, especially in the electronics and semiconductor industry for testers, CVD and TFT manufacturing.

TMC-40 is a clear, colorless, non-conductive, non-flammable, residue free, thermally and chemically stable liquid ideal for use in many heat transfer fluid applications.  Its wide liquid range (-57 to 165 deg C) and compatibility makes it well suited for a variety of electronic single and two phase heat transfer applications, including in the semiconductor market for etchers, ion implanters, testers, CVD and TFT manufacturing. Because TMC-40 has a narrow boiling range, its composition will change little with time, this keeps fluid loss to a minimum and insures consistent transport properties.



APPLICATIONS

  • Dielectric Bath
  • Electronic Testing
  • Gross Leak Testing
  • Heat Transfer
  • Semiconductor Cooling
  • Thermal Shock Testing



PHYSICAL PROPERTIES COMPARISON

 PROPERTY UNITS 3M FC-40 TMC-40 TMC-40E
Type   Virgin Replacement Equivalent
Form   Liquid Liquid Liquid
Color   Colorless Colorless Colorless
Odor   Odorless Odorless Odorless
Boiling Point °C 165 165 158
Pour Point °C -57 -57 -55
Density  kg/m3 1855 1855 1820
Kinematic Viscosity cSt 2.2 2.2 3.18
Vapor Pressure psi 0.05 0.04 0.0046
Specific Heat J/kg-K 1100 1100 1509
Latent Heat of Vaporization J/g 69 69 130
Coefficient of Thermal Expansion 1/°C 0.0012 0.0012 0.0054
Thermal Conductivity W/m-K 0.065 0.065 0.092
Dielectric Strength kV 46 >40 40
Electrical Resistivity Ohm-cm 4.0 x 10-15 4.0 x 10-15 No Data
Average Molecular Weight g/mol 650 650 550
Flash Point   None None None
Water Solubility
<10 <10
Solubility in Water ppm <5 <5
Ozone Depletion Potential (ODP)   0 0 0
Global Warming Potential (GWP)   >5000 6000 175



MATERIAL COMPATIBILITY

Compatible with most metals, plastics and elastomers.



PACKAGING

  • 1 Gallon Jug (11lb/5kg)
  • 5 Gallon Pail (44lb/20kg)
  • 55 Gallon Drum (550lb/250kg)
  • 275 Gallon Tote - Available Upon Request


DISPOSAL / RECYCLING

This fluid can be recycled and reused. Why pay for expensive disposal services, when TMC Industries can reclaim your used fluorinated fluids, restoring them to like-new condition, and saving you up to 50% in replacement fluids? TMC Industries also buys and resells used fluorinated fluids. Contact us for more details.



DOCUMENTS

TMC Performance Fluids Brochure

TMC Used Fluid Reclamation Service Brochure

TMC™ by TMC™

TMC-40 ELECTRONIC LIQUID

Translation missing: en.products.product.sku:95000-11

TMC-40 is a direct replacement for 3M™ FC-40 offering the same chemistry and physical properties.
TMC-40 is a direct replacement for 3M™ FC-40 offering the same chemistry and physical properties.
Regular price
$854.08
Sale price
$854.08
Regular price
Size:
Shipping
Consider any shipping or transit time offered to you by the carrier as an estimate.
Returns
Return most new, unopened items within 30 days of delivery for a refund minus restocking fee.

TMC Industries can reclaim your used fluids/solvents/oils, restoring them to like new condition. Our reclamation process typically achieves 99% purity.

Contact us for more details.

Country of Origin: China
Schedule B Code: 2909.19.0000
Brand & Series: TMC-40
MPN: 95000
CAS #: 86508-42-1
MIL-SPEC #: 883
