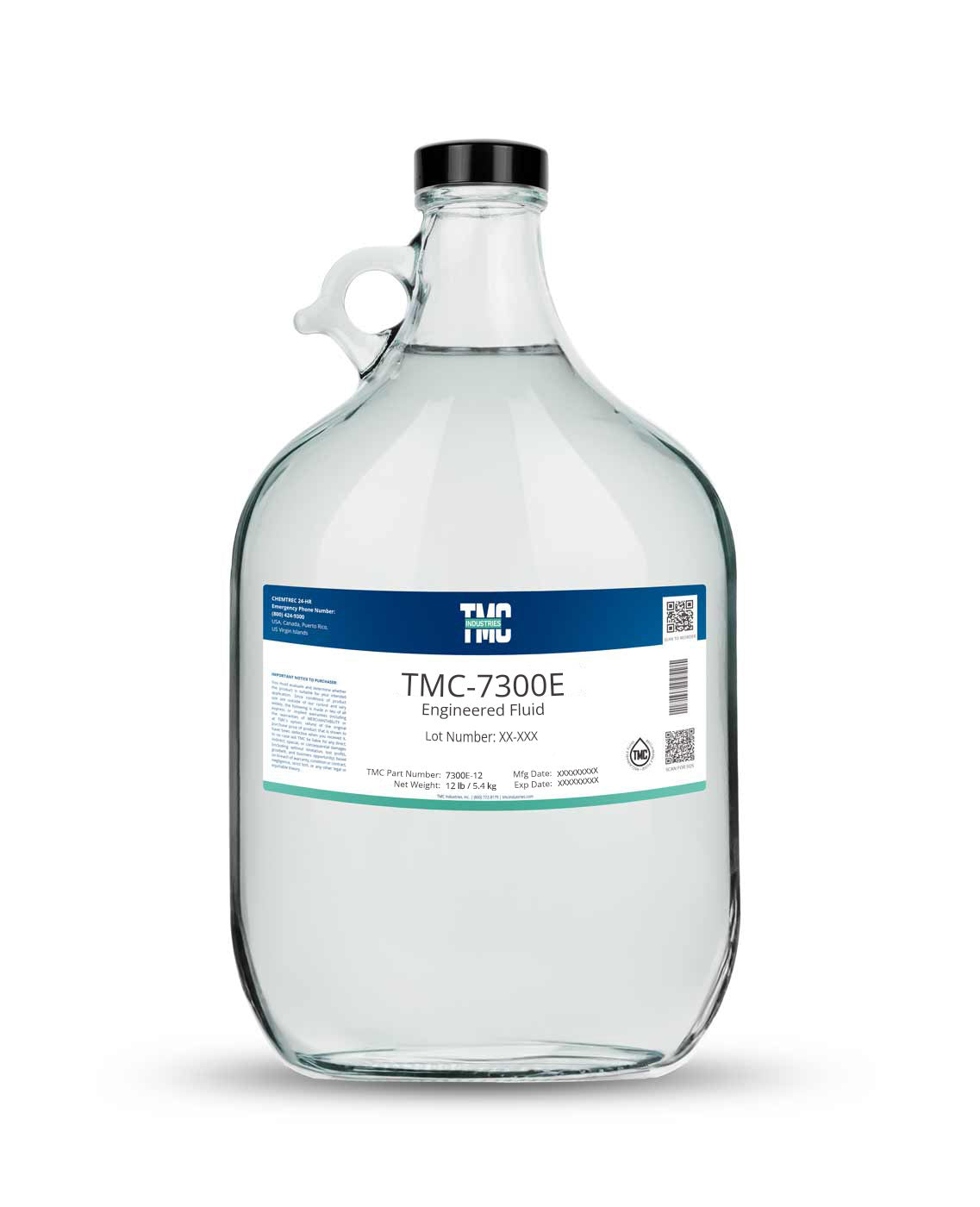

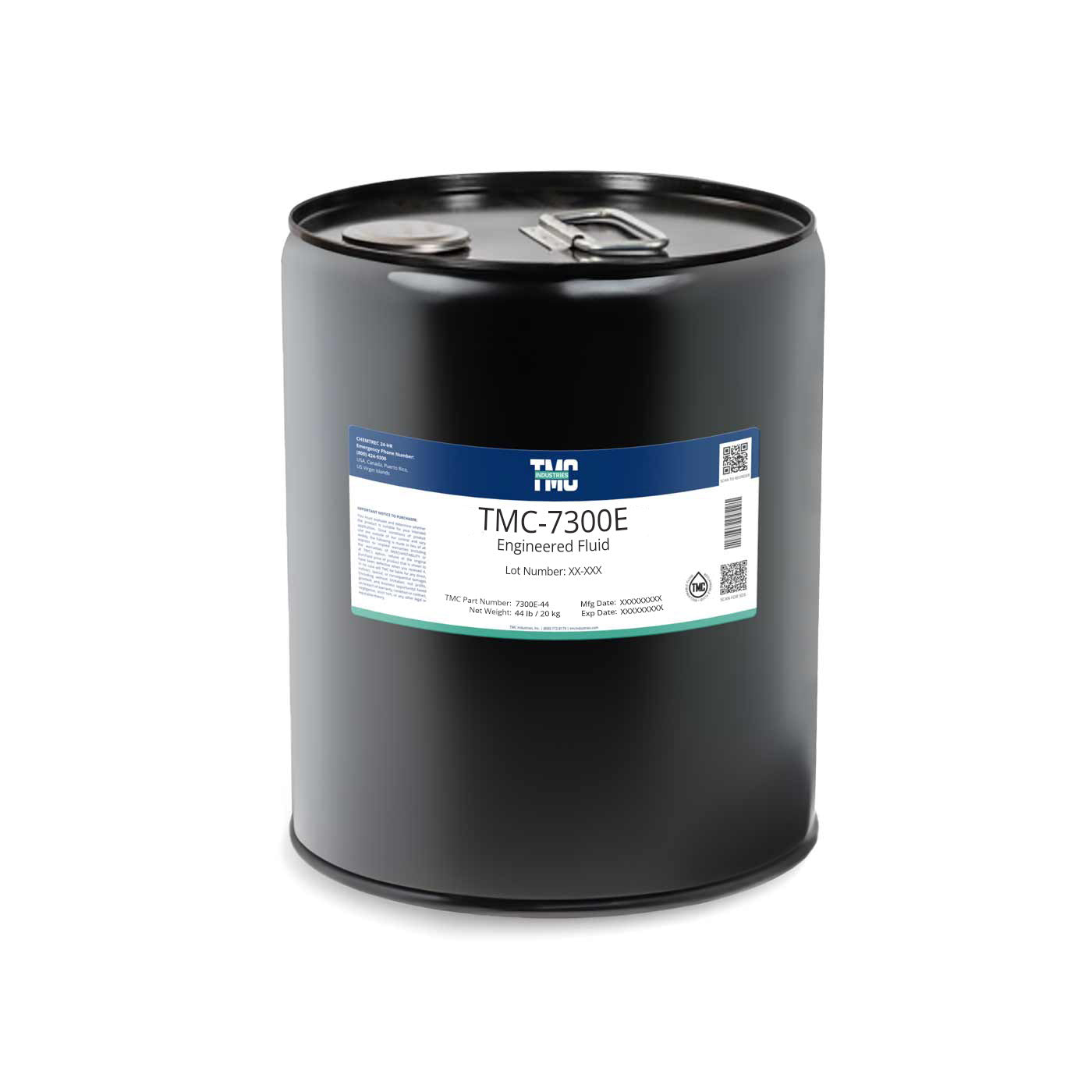

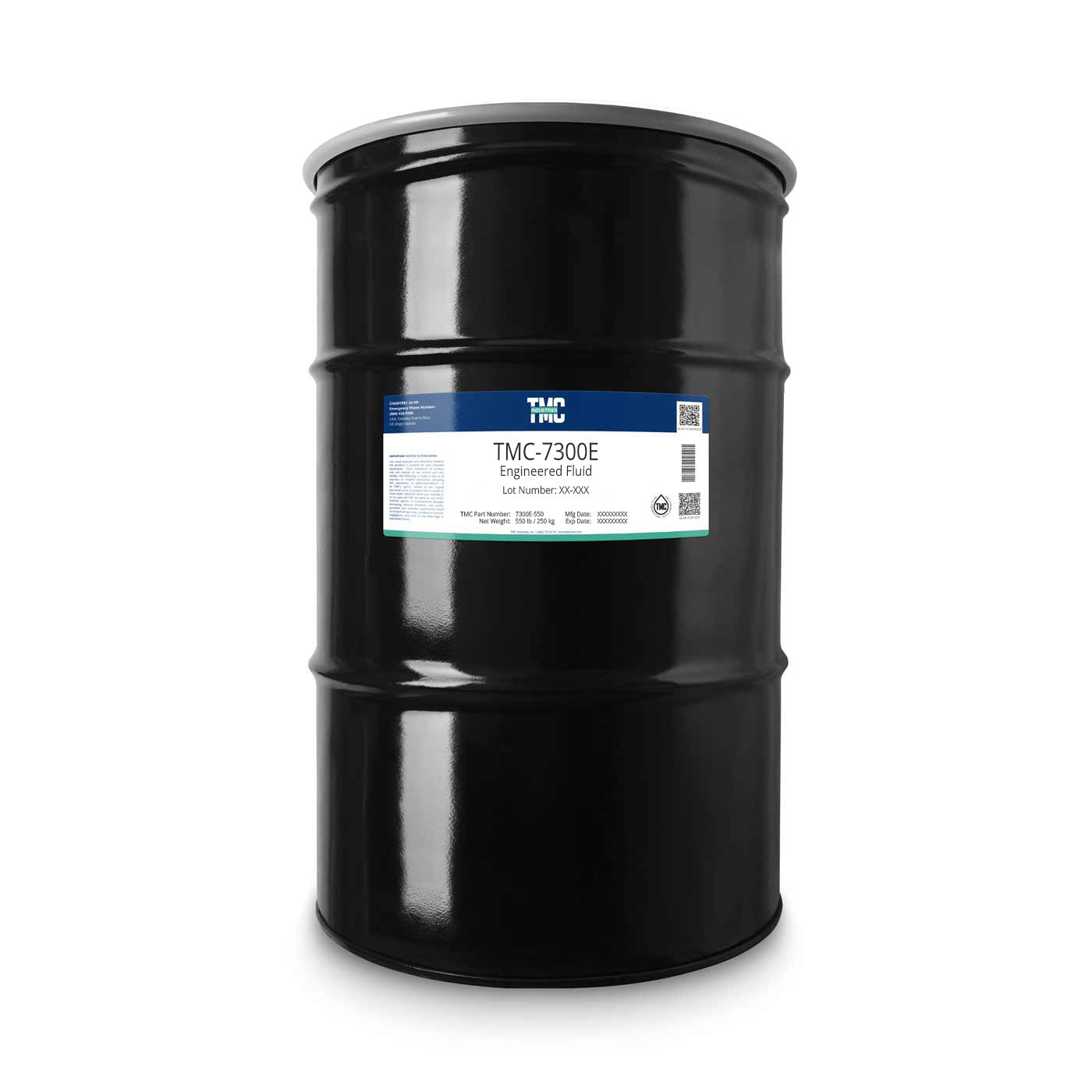

TMC-7300E (Equivalent to 3M™ Novec™ 7300 Fluid) **Passed 3rd Party Laboratory Testing: Non Detectable PFAS**
Out of stock
Heat transfer, Lubricant Deposition, Electronic Testing and Cleaning Applications
7300E-12
$417.72
customers are viewing this product
Introduction:
TMC-7300E is a replacement fluid for 3M™ Novec™ 7300. It is a clear, colorless, odorless fluid that has utility in a wide variety of applications, including heat transfer, lubricant deposition, electronic testing, and cleaning applications. This product is non-flammable, thermally stable, non-ozone depleting, and has a very low global warming potential. It does not contribute to the formation of photochemical smog. It is recommended for use as a replacement for perfluoropolyethers (PFPEs), perfluorocarbons (PFCs), hydrochlorofluorocarbons (HCFCs), and hydrofluorocarbons (HFCs). Excellent safety profile backed by 3rd party testing for Non-Detectable PFAS, this product is the ideal replacement for Ozone-depleting substances. With its wide range of applications and non-flammable nature, it offers the perfect balance of performance and protection.
On this basis, it provides a useful tool to help meet commitments for greenhouse gas emission reduction. The boiling point, wide liquid range, and low-temperature viscosity of this product make it ideal for cooling ion implanters, dry etchers, and CVD machines. It is effective at mitigating the aggressiveness of solvents and is useful in inerting the flammability of blends. The chemical and thermal stability of this product lends to its use as a reaction media.
TMC-7300E is equivalent to 3M™ Novec 7300.
Typical Physical Properties
Appearance: Clear and colorless
Molecular Weight: 350
Boiling Point (°C) @760 mmHg: 98.0
Freeze Point (°C): -38
Critical Temperature (°C): 243
Critical Pressure (Mpa): 1.88
Liquid Density (g/ml, 25°C): 1.67
Surface Tension (dynes/cm): 15.0
Solubility of Solvent in Water (ppmw): <1
Solubility of Water in Solvent (ppmw): 67
Vapor Pressure (mmHg): 45
Viscosity @ 25°C (cSt): 0.71
Viscosity @ -35°C (cSt): 3.51
Absolute viscosity (mPa.S): 1.18
Specific heat (J/Kg-K): 1140
Heat of Vaporization (Kj/kg): 102
Coefficient of expansion (K-1): 0.0013
Thermal Conductivity (W/m-K): 0.063
Dielectric Strength@1atm 0.1″gap (KV): >25
Dielectric Constant@1kHz: 6.14
Volume Resistivity (Ohm-cm): 1011
Applications
High performance in heat transfer applications in wafer-fab equipment and for direct contact cooling with military-grade electronics.
Heat transfer, Lubricant Deposition, Electronic Testing and Cleaning Applications
Heat Transfer
This product is ideal as a heat transfer fluid for the demanding requirements of semiconductor processing and electronics equipment. It is designed to balance performance with favorable environmental and worker safety properties. In heat transfer applications, it offers:
• Excellent dielectric properties • non-flammability
• Wide liquid range • Low Global Warming Potential (GWP)
• Good materials compatibility • Zero Ozone Depletion Potential (ODP)
• Low toxicity
For heat transfer applications, favorable environmental health and safety properties make it a long-term, sustainable solution, helping improve reliability, address environmental concerns, and lower overall operating costs.
TMC-7300E provides exceptional high-performance with low toxicity and excellent compatibility for elastomer, polyurethane, metals, and plastics.
Environmental and Safety Properties
Ozone Depletion Potential-ODP: 0
Low Global Warming Potential: 200
Atmospheric Lifetime (years): 3.8
Flash Point (°C): None
Flammability Range in Air: None
Exposure Guidelines (8 hr. TWA) (ppm): 100
Recycle and Reclamation:
Why pay for expensive disposal services, when TMC Industries can reclaim your used fluorinated fluids, restoring them to like-new condition, and saving you up to 50% in replacement fluids? TMC Industries also buys and resells used fluorinated fluids. Contact us for more details.
