Product information

TMC's ISO 46 Oil is a long-life, premium compressor lubricant based on novel, proprietary technology. It incorporates the highest quality, thermally stable synthetics fortified with premium non-detergent additives for maximum protection at high temperatures. It lasts up to 8,000 hours, effectively reducing maintenance and waste oil disposal costs.

  • Improves Compressor Efficiency
  • Controls Foam and Reduces Wear
  • Resists Water Contamination
  • Resists Heat and Oxidation



APPLICATIONS

  • Single and multistage rotary screw, vane, centrifugal and reciprocating compressor crankcases and cylinders
  • Vacuum Pumps
  • Pressure Washer Pumps
  • Gears, Bearings, Blowers and Pumps



PHYSICAL PROPERTIES

Iso Viscosity Grade

46

ASTM D2422

Kinematic Viscosity @ 100 °C, cSt

7.4

ASTM D445

Kinematic Viscosity @ 40 °C, cSt

43.7

ASTM D445

Viscosity Index

132

ASTM D2270

Color

L0.5

ASTM D1500

Flash Point °C (°F)

262 (504)

ASTM D92

Fire Point °C (°F)

284 (543)

ASTM D92

Pour Point °C (°F)

-38 (-36)

ASTM D97

Four Ball Wear Test, mm scar         75 °C, 1200 rpm, 40kg, 1 hr



0.41

ASTM D4172

Acid Number (TAN)

0.29

ASTM D665

Copper Corrosion, 121°C, 3hr

1A

ASTM D130

Demulsibility

40-40-0 (10)

ASTMD1401

FZG Failure Stage, A/8.3/90

-

DIN 51534

Foam Characteristics, ml

Seq. 1

Seq. II

Seq. III



0/0

0/0

0/0

ASTM D892




MATERIAL COMPATIBILITY

TMC ISO-46 is compatible with petroleum oils and most synthetic oils, seals, paints and materials including the following:

  • Gases:
    • Nitrogen, Hydrogen, Helium, Carbon Monoxide
    • Carbon Dioxide (dry), Ethylene, Methane
    • Propane, Butane, Propylene, Butylenes
    • Natural Gas, Benzene, Butadiene
    • Hydrogen Sulfide
    • Synthetic Gas, Sulfur Dioxide
  • Paints
    • Epoxy, Oil Resistant Alkyd, Acrylic Enamel
  • Plastics
    • Acetal, ABS, Phenolic, Polyamide-imide
    • Polyamide (Nylon)
    • Polycarbonate
    • Polyester, Polyetherimide, Polyimide
    • Polyphenylene oxide, Polystyrene, Polysulfone
    • PTFE (Teflon), Terephthalate
  • Elastomers
    • Fluoroelastomer, Nitrile
    • Polyacrylate, TFE/P, Poly Urethane

TMC ISO-46 is NOT compatible with polyalkylene glycol or silicone oils.



Product information

TMC's ISO 46 Oil is a long-life, premium compressor lubricant based on novel, proprietary technology. It incorporates the highest quality, thermally stable synthetics fortified with premium non-detergent additives for maximum protection at high temperatures. It lasts up to 8,000 hours, effectively reducing maintenance and waste oil disposal costs.

  • Improves Compressor Efficiency
  • Controls Foam and Reduces Wear
  • Resists Water Contamination
  • Resists Heat and Oxidation



APPLICATIONS

  • Single and multistage rotary screw, vane, centrifugal and reciprocating compressor crankcases and cylinders
  • Vacuum Pumps
  • Pressure Washer Pumps
  • Gears, Bearings, Blowers and Pumps



PHYSICAL PROPERTIES

Iso Viscosity Grade

46

ASTM D2422

Kinematic Viscosity @ 100 °C, cSt

7.4

ASTM D445

Kinematic Viscosity @ 40 °C, cSt

43.7

ASTM D445

Viscosity Index

132

ASTM D2270

Color

L0.5

ASTM D1500

Flash Point °C (°F)

262 (504)

ASTM D92

Fire Point °C (°F)

284 (543)

ASTM D92

Pour Point °C (°F)

-38 (-36)

ASTM D97

Four Ball Wear Test, mm scar         75 °C, 1200 rpm, 40kg, 1 hr



0.41

ASTM D4172

Acid Number (TAN)

0.29

ASTM D665

Copper Corrosion, 121°C, 3hr

1A

ASTM D130

Demulsibility

40-40-0 (10)

ASTMD1401

FZG Failure Stage, A/8.3/90

-

DIN 51534

Foam Characteristics, ml

Seq. 1

Seq. II

Seq. III



0/0

0/0

0/0

ASTM D892




MATERIAL COMPATIBILITY

TMC ISO-46 is compatible with petroleum oils and most synthetic oils, seals, paints and materials including the following:

  • Gases:
    • Nitrogen, Hydrogen, Helium, Carbon Monoxide
    • Carbon Dioxide (dry), Ethylene, Methane
    • Propane, Butane, Propylene, Butylenes
    • Natural Gas, Benzene, Butadiene
    • Hydrogen Sulfide
    • Synthetic Gas, Sulfur Dioxide
  • Paints
    • Epoxy, Oil Resistant Alkyd, Acrylic Enamel
  • Plastics
    • Acetal, ABS, Phenolic, Polyamide-imide
    • Polyamide (Nylon)
    • Polycarbonate
    • Polyester, Polyetherimide, Polyimide
    • Polyphenylene oxide, Polystyrene, Polysulfone
    • PTFE (Teflon), Terephthalate
  • Elastomers
    • Fluoroelastomer, Nitrile
    • Polyacrylate, TFE/P, Poly Urethane

TMC ISO-46 is NOT compatible with polyalkylene glycol or silicone oils.



TMC™ by TMC™

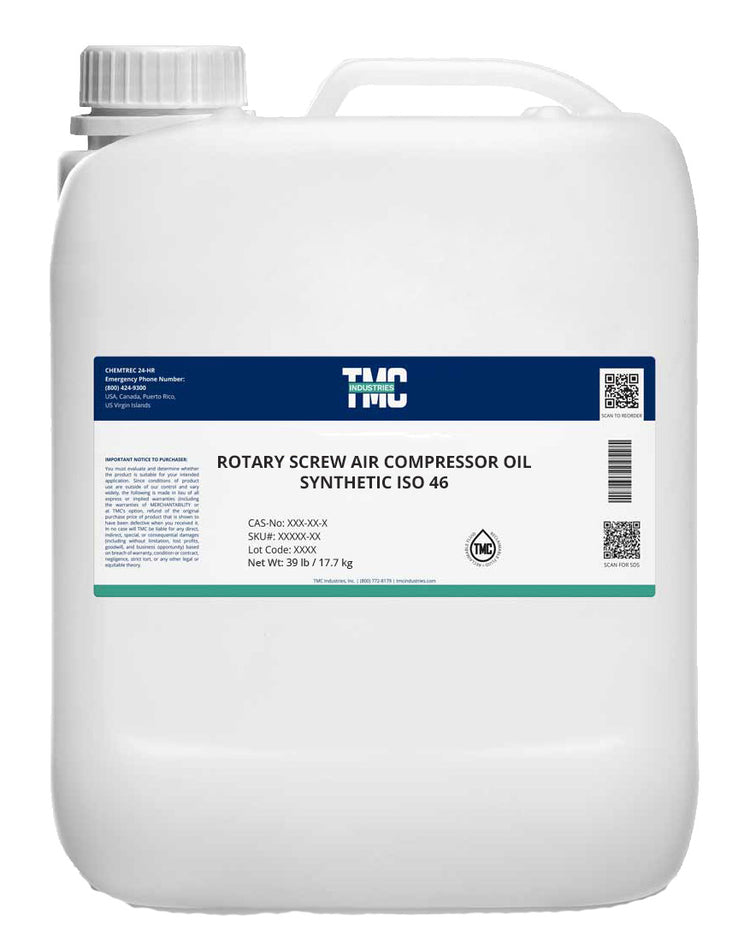

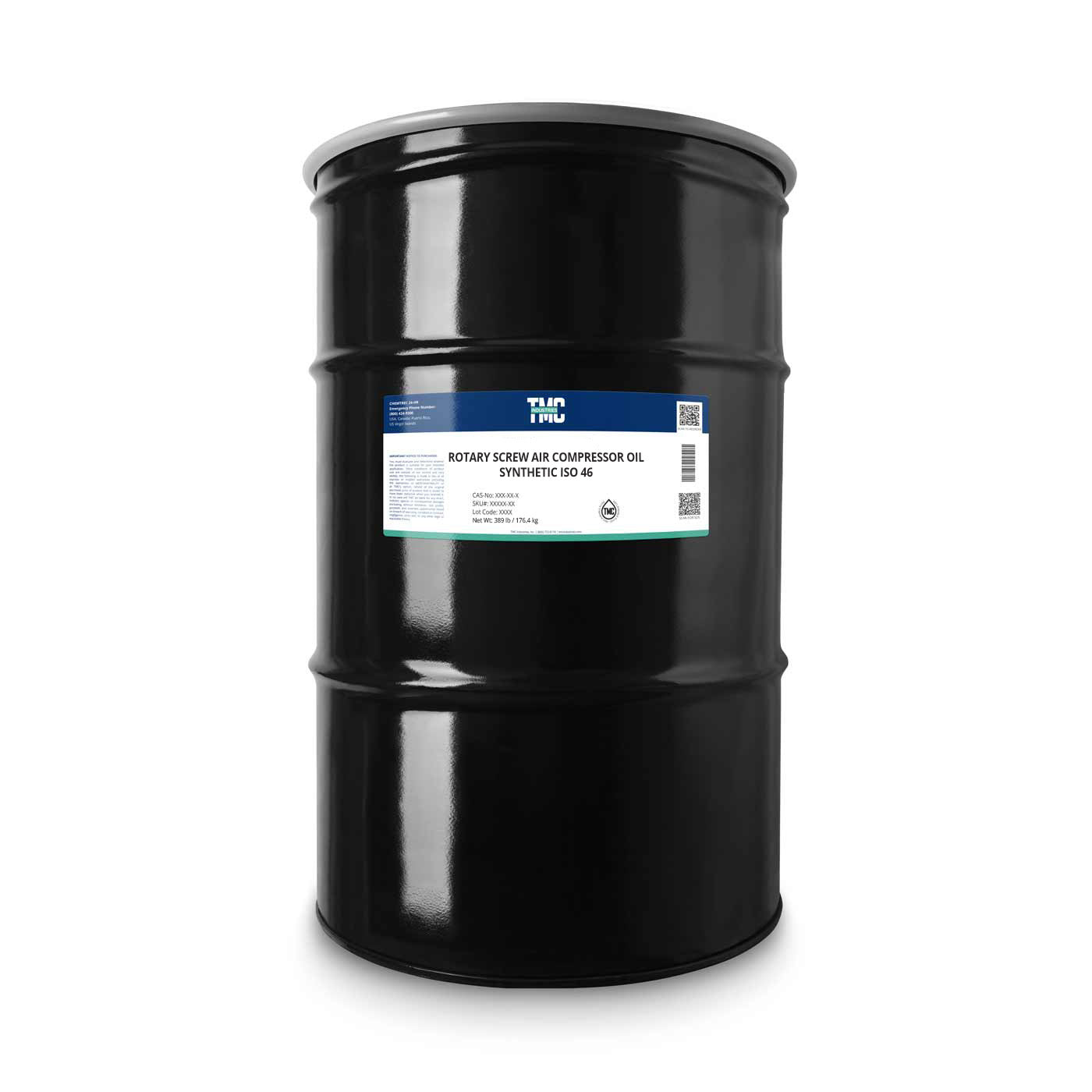

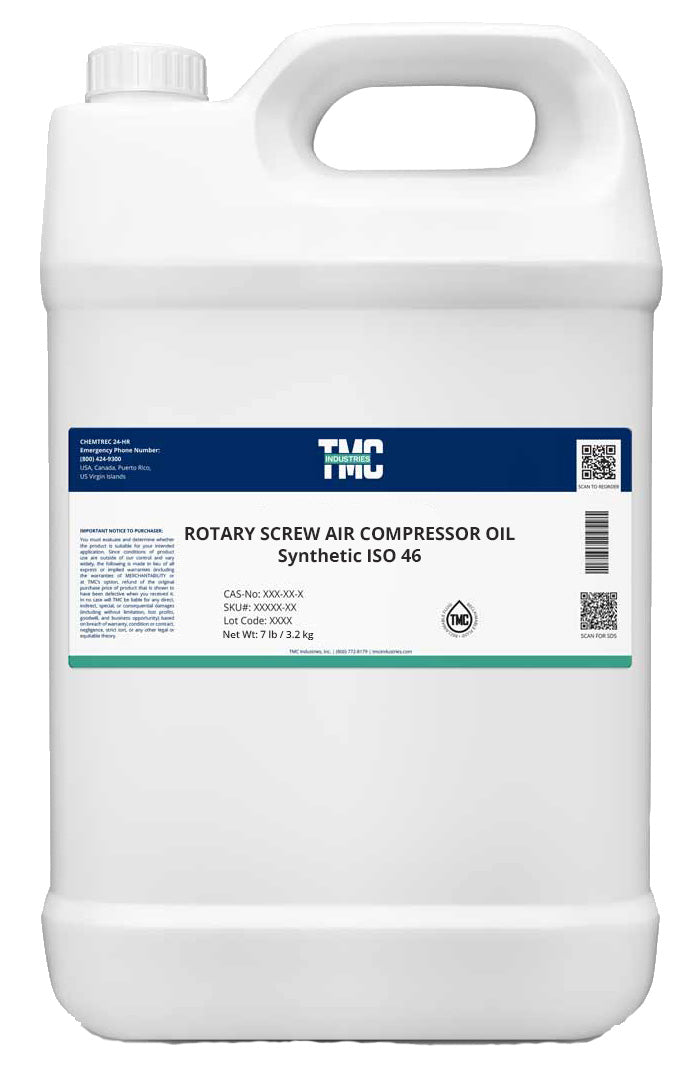

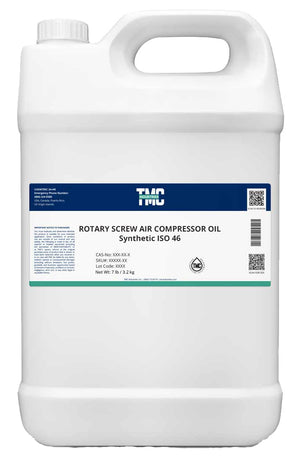

ROTARY SCREW AIR COMPRESSOR OIL - SYNTHETIC ISO 46

Translation missing: en.products.product.sku:103101-39

Regular price
$165.00
Sale price
$165.00
Regular price
Size:
Shipping
Consider any shipping or transit time offered to you by the carrier as an estimate.
Returns
Return most new, unopened items within 30 days of delivery for a refund minus restocking fee.

TMC Industries can reclaim your used fluids/solvents/oils, restoring them to like new condition. Our reclamation process typically achieves 99% purity.

Contact us for more details.

Country of Origin: United States
Schedule B Code: 3902.20.0000
Brand & Series: Rotary Screw Air Compressor Oil - Synthetic ISO 46
MPN: 103101
CAS #: 9003-27-4
MIL-SPEC #: None
