About
Chemours Opteon™ SF10 heat transfer fluid is a clear, colorless, non-flammable, thermally stable fluorinated fluid developed in response to worldwide market demand for a low environmental impact heat transfer fluid, brine coolant, dielectric fluid, and test fluid. The fluid has a boiling point of 110 °C, zero ozone depletion potential (ODP), and a Low global warming potential (GWP) of 2.5 (100 yr-ITH).
Opteon™ SF10 is appropriate to replace PFCs, PFPEs, HFEs, HFCs, and HCFCs in heat transfer applications. Opteon™ SF10 is a direct replacement for many Galden™ and Fluorinert™ fluids. The favorable characteristics of the product's viscosity and density enable superior heat transfer performance.
Physical Properties (@ 25°C (77°F))
|
Molecular Weight |
362 g/mol |
|
Boiling Point |
110°C (230°F) |
|
Freezing Point |
<-90°C (<-130°F) |
|
Critical Temperature |
240°C (464°F) |
|
Critical Pressure |
1.7 MPa |
|
Liquid Density |
1.58 g/cm3 |
|
Liquid Viscosity |
0.71 cSt |
|
Liquid Specific Heat |
1.0 kJ/kg-K |
|
Liquid Thermal Conductivity |
0.065 W/m-K |
|
Surface Tension |
18 Dyn/cm |
|
Vapor Pressure |
2.9 KPa |
|
Heat of Vaporization |
115 kJ/kg |
|
Solubility in Water |
<1 ppm |
|
Water Solubility |
80 ppm |
|
Flash Point, CC ASTM D56 |
none |
|
Dielectric Constant at 1 kHz |
5.48 |
|
Resistivity |
109-11 Ohm-cm |
|
Occupational Exposure Limits |
500 ppm |
|
Global Warming Potential, 100-yr ITH |
2.5 |
Chemours Opteon™ SF10 heat transfer fluid is a clear, colorless, non-flammable, thermally stable fluorinated fluid developed in response to worldwide market demand for a low environmental impact heat transfer fluid, brine coolant, dielectric fluid, and test fluid. The fluid has a boiling point of 110 °C, zero ozone depletion potential (ODP), and a Low global warming potential (GWP) of 2.5 (100 yr-ITH).
Opteon™ SF10 is appropriate to replace PFCs, PFPEs, HFEs, HFCs, and HCFCs in heat transfer applications. Opteon™ SF10 is a direct replacement for many Galden™ and Fluorinert™ fluids. The favorable characteristics of the product's viscosity and density enable superior heat transfer performance.
Physical Properties (@ 25°C (77°F))
|
Molecular Weight |
362 g/mol |
|
Boiling Point |
110°C (230°F) |
|
Freezing Point |
<-90°C (<-130°F) |
|
Critical Temperature |
240°C (464°F) |
|
Critical Pressure |
1.7 MPa |
|
Liquid Density |
1.58 g/cm3 |
|
Liquid Viscosity |
0.71 cSt |
|
Liquid Specific Heat |
1.0 kJ/kg-K |
|
Liquid Thermal Conductivity |
0.065 W/m-K |
|
Surface Tension |
18 Dyn/cm |
|
Vapor Pressure |
2.9 KPa |
|
Heat of Vaporization |
115 kJ/kg |
|
Solubility in Water |
<1 ppm |
|
Water Solubility |
80 ppm |
|
Flash Point, CC ASTM D56 |
none |
|
Dielectric Constant at 1 kHz |
5.48 |
|
Resistivity |
109-11 Ohm-cm |
|
Occupational Exposure Limits |
500 ppm |
|
Global Warming Potential, 100-yr ITH |
2.5 |

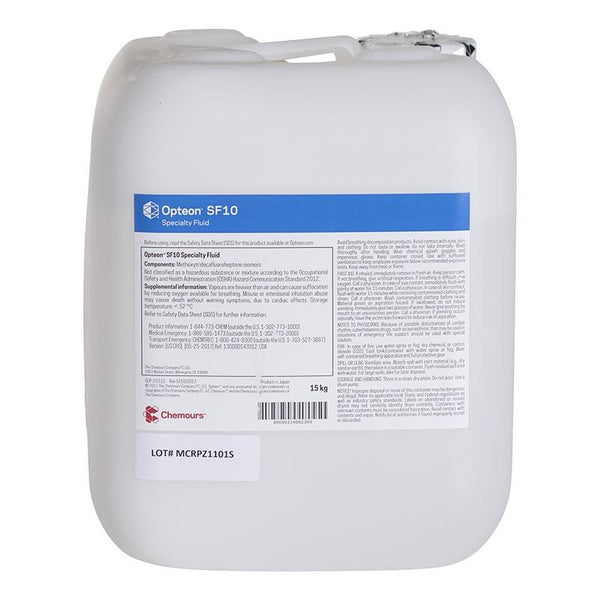

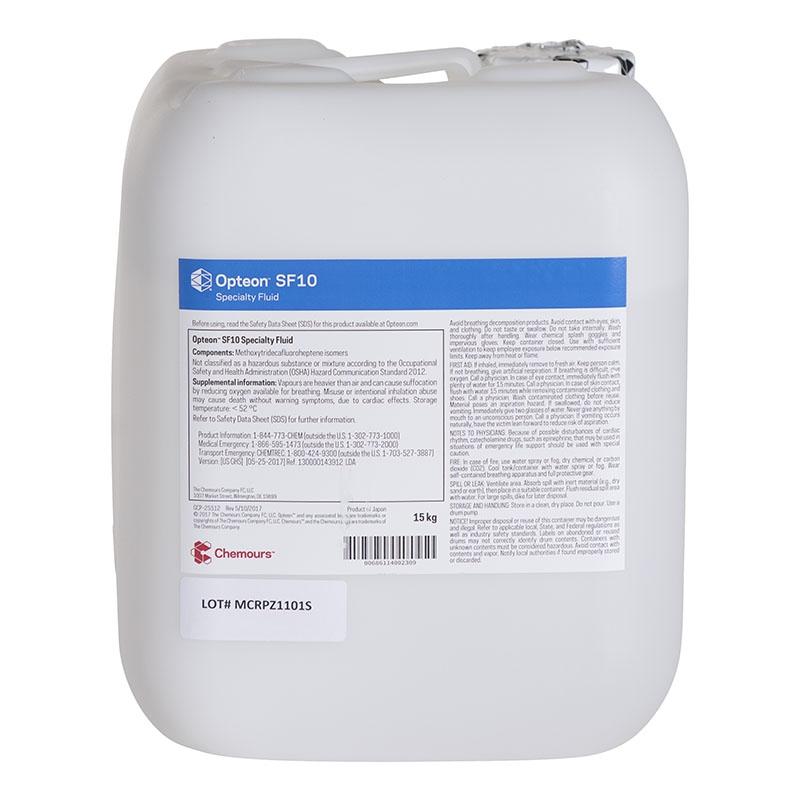

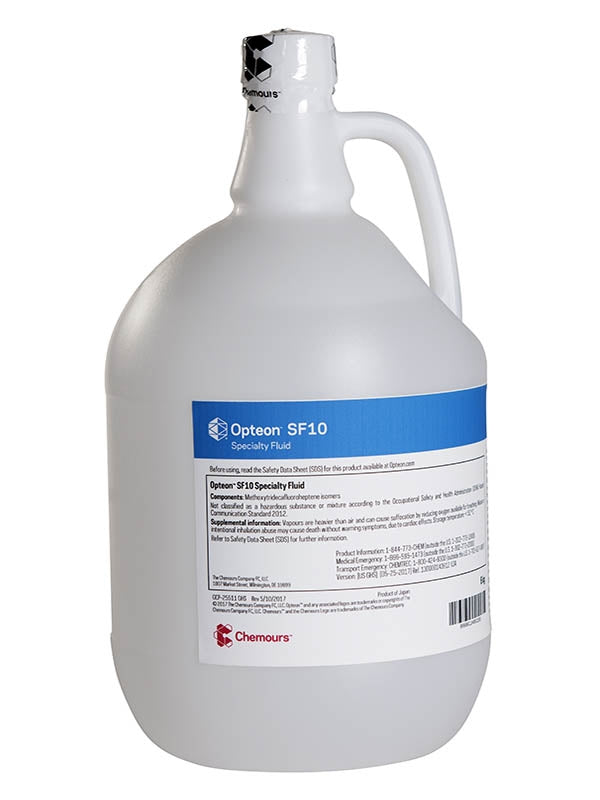

OPTEON™ SF10
Translation missing: en.products.product.sku:9779-16.5
- Regular price
- $873.77
- Sale price
- $873.77
- Regular price
-
Shipping Policy
Shipping Policy
Return Policy
Return Policy
Manufacturer P/N: 0000
CAS#: Not Assigned - Methoxytridecafluoroheptene isomers
Harmonized Tariff#: 3904.69
Schedule B#: 3904.69.0000
ECCN#: EAR99 EC/List#: 946-374-7
UFI#:
Index#:
EU-REACH#:
K-REACH#:
Trade Description: Heat Transfer Fluid
Country of Origin: United States
