Galden® HT is a line of dielectric fluids with boiling points ranging from 55° C to 270° C. The excellent dielectric properties of these perfluorinated polyethers (PFPE) and their high chemical stability combined with the capacity to operate at very low as well as elevated temperatures, make them the best heat transfer fluids for the aggressive conditions found in semiconductor, electronic, and solar industries.
Galden® HT PFPE:
Property | Units | HT55 | HT70 | HT80 | HT110 | HT135 | HT170 | HT200 | HT230 | HT270 |
Boiling Point | °C | 55 | 70 | 80 | 110 | 135 | 170 | 200 | 230 | 270 |
Pour Point | °C | <– 125 | <– 110 | – 110 | – 100 | – 100 | – 97 | – 85 | – 77 | – 66 |
Density | g/cm3 | 1.65 | 1.68 | 1.69 | 1.71 | 1.72 | 1.77 | 1.79 | 1.82 | 1.85 |
Kinematic Viscosity | cSt | 0.45 | 0.50 | 0.57 | 0.77 | 1.00 | 1.80 | 2.40 | 4.40 | 14.00 |
Vapor Pressure | torr | 225 | 141 | 105 | 17 | 5.8 | 0.8 | 0.2 | 0.03 | <10-2 |
Specific Heat | cal/g·°C | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 |
Heat of Vaporization | 22 | 17 | 17 | 17 | 16 | 16 | 15 | 15 | 15 | |
Refractive Index | cal/g | 1.280 | 1.280 | 1.280 | 1.280 | 1.280 | 1.280 | 1.281 | 1.283 | 1.283 |
Thermal Expansion | cm3/cm3·°C | 0.0011 | 0.0011 | 0.0011 | 0.0011 | 0.0011 | 0.0011 | 0.0011 | 0.0011 | 0.0011 |
Surface Tension | dyne/cm | 14 | 14 | 16 | 16 | 17 | 18 | 19 | 19 | 20 |
Thermal Conductivity | W/m·K | 0.065 | 0.065 | 0.065 | 0.065 | 0.065 | 0.065 | 0.065 | 0.065 | 0.065 |
Dielectric Strength | kV | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | |
Dielectric Constant | 1.86 | 1.86 | 1.89 | 1.92 | 1.92 | 1.94 | 1.94 | 1.94 | 1.94 | |
Average Molecular Weight | g/mol | 340 | 410 | 430 | 580 | 610 | 760 | 870 | 1020 | 1550 |
Solubility of Water | ppm (wt) | < 10 | < 10 | < 10 | < 10 | < 10 | < 10 | < 10 | < 10 | < 10 |
Solubility of Air | cm3 gas | 26 | 26 | 26 | 26 | 26 | 26 | 26 | 26 | 26 |
Applications:
- Direct immersion
- Semiconductor
- Vapor Phase Heating
- Etcher – PVD, CVD
- Ion implanter
- Radar
- Recirculating Chillers
Nuclear
- UF6 production
Electrical
- Transformer and Supercomputer cooling
- Power supplies
Chemical
- Aggressive conditions
Pharmaceutical
- Freeze dryer
Features: Chemical Resistant, High Density, High Heat Resistance
Recycle and Reclamation:
Why pay for expensive disposal services, when TMC Industries can reclaim your used fluorinated and PFPE fluids, restoring them to like-new condition, and saving you up to 50% in replacement fluids? TMC Industries also buys and resells used fluorinated fluids. Contact us for more details.
Galden® HT is a line of dielectric fluids with boiling points ranging from 55° C to 270° C. The excellent dielectric properties of these perfluorinated polyethers (PFPE) and their high chemical stability combined with the capacity to operate at very low as well as elevated temperatures, make them the best heat transfer fluids for the aggressive conditions found in semiconductor, electronic, and solar industries.
Galden® HT PFPE:
Property | Units | HT55 | HT70 | HT80 | HT110 | HT135 | HT170 | HT200 | HT230 | HT270 |
Boiling Point | °C | 55 | 70 | 80 | 110 | 135 | 170 | 200 | 230 | 270 |
Pour Point | °C | <– 125 | <– 110 | – 110 | – 100 | – 100 | – 97 | – 85 | – 77 | – 66 |
Density | g/cm3 | 1.65 | 1.68 | 1.69 | 1.71 | 1.72 | 1.77 | 1.79 | 1.82 | 1.85 |
Kinematic Viscosity | cSt | 0.45 | 0.50 | 0.57 | 0.77 | 1.00 | 1.80 | 2.40 | 4.40 | 14.00 |
Vapor Pressure | torr | 225 | 141 | 105 | 17 | 5.8 | 0.8 | 0.2 | 0.03 | <10-2 |
Specific Heat | cal/g·°C | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 |
Heat of Vaporization | 22 | 17 | 17 | 17 | 16 | 16 | 15 | 15 | 15 | |
Refractive Index | cal/g | 1.280 | 1.280 | 1.280 | 1.280 | 1.280 | 1.280 | 1.281 | 1.283 | 1.283 |
Thermal Expansion | cm3/cm3·°C | 0.0011 | 0.0011 | 0.0011 | 0.0011 | 0.0011 | 0.0011 | 0.0011 | 0.0011 | 0.0011 |
Surface Tension | dyne/cm | 14 | 14 | 16 | 16 | 17 | 18 | 19 | 19 | 20 |
Thermal Conductivity | W/m·K | 0.065 | 0.065 | 0.065 | 0.065 | 0.065 | 0.065 | 0.065 | 0.065 | 0.065 |
Dielectric Strength | kV | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | |
Dielectric Constant | 1.86 | 1.86 | 1.89 | 1.92 | 1.92 | 1.94 | 1.94 | 1.94 | 1.94 | |
Average Molecular Weight | g/mol | 340 | 410 | 430 | 580 | 610 | 760 | 870 | 1020 | 1550 |
Solubility of Water | ppm (wt) | < 10 | < 10 | < 10 | < 10 | < 10 | < 10 | < 10 | < 10 | < 10 |
Solubility of Air | cm3 gas | 26 | 26 | 26 | 26 | 26 | 26 | 26 | 26 | 26 |
Applications:
- Direct immersion
- Semiconductor
- Vapor Phase Heating
- Etcher – PVD, CVD
- Ion implanter
- Radar
- Recirculating Chillers
Nuclear
- UF6 production
Electrical
- Transformer and Supercomputer cooling
- Power supplies
Chemical
- Aggressive conditions
Pharmaceutical
- Freeze dryer
Features: Chemical Resistant, High Density, High Heat Resistance
Recycle and Reclamation:
Why pay for expensive disposal services, when TMC Industries can reclaim your used fluorinated and PFPE fluids, restoring them to like-new condition, and saving you up to 50% in replacement fluids? TMC Industries also buys and resells used fluorinated fluids. Contact us for more details.

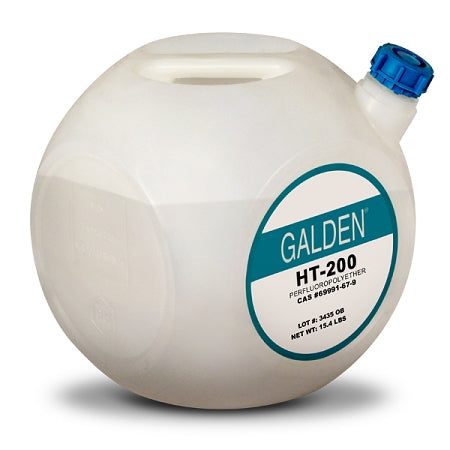

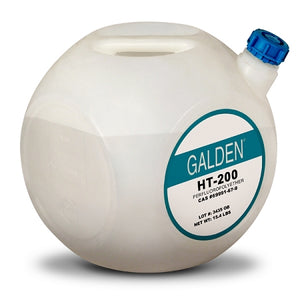

GALDEN® HT200
Translation missing: en.products.product.sku:20200-5
- Regular price
- $1,287.00
- Sale price
- $1,287.00
- Regular price
-
Shipping Policy
Shipping Policy
Return Policy
Return Policy
Schedule B Code: 3904.69.5000
Brand & Series: Galden HT200
MPN:
CAS #:
MIL-SPEC #: None
