Product information

Galden® HT-110 is an excellent, miscible replacement for FC-770. It is also used to replace FC-3283 in some applications. See miscibility statement for more details.

Galden® HT is a line of dielectric fluids with boiling points ranging from 55° C to 270° C. The excellent dielectric properties of these perfluorinated polyethers (PFPE) and their high chemical stability combined with the capacity to operate at very low as well as elevated temperatures, make them the best heat transfer fluids for the aggressive conditions found in semiconductor, electronic, and solar industries.



Galden® HT PFPE:

Property Units HT55 HT70 HT80 HT110  HT135 HT170 HT200 HT230 HT270
Boiling Point °C 55 70 80 110 135 170 200 230 270
Pour Point °C <– 125 <– 110 – 110 – 100 – 100 – 97 – 85 – 77 – 66
Density g/cm3 1.65 1.68 1.69 1.71 1.72 1.77 1.79 1.82 1.85
Kinematic Viscosity cSt 0.45 0.50 0.57 0.77 1.00 1.80 2.40 4.40 14.00
Vapor Pressure torr 225 141 105 17 5.8 0.8 0.2 0.03 <10-2
Specific Heat cal/g·°C 0.23 0.23 0.23 0.23 0.23 0.23 0.23 0.23 0.23
Heat of Vaporization
22 17 17 17 16 16 15 15 15
Refractive Index cal/g 1.280 1.280 1.280 1.280 1.280 1.280 1.281 1.283 1.283
Thermal Expansion cm3/cm3·°C 0.0011 0.0011 0.0011 0.0011 0.0011 0.0011 0.0011 0.0011 0.0011
Surface Tension dyne/cm 14 14 16 16 17 18 19 19 20
Thermal Conductivity W/m·K 0.065 0.065 0.065 0.065 0.065 0.065 0.065 0.065 0.065
Dielectric Strength kV 40 40 40 40 40 40 40 40
Dielectric Constant
1.86 1.86 1.89 1.92 1.92 1.94 1.94 1.94 1.94
Average Molecular Weight g/mol 340 410 430 580 610 760 870 1020 1550
Solubility of Water ppm (wt) < 10 < 10 < 10 < 10 < 10 < 10 < 10 < 10 < 10
Solubility of Air cm3 gas 26 26 26 26 26 26 26 26 26





Product information

Galden® HT-110 is an excellent, miscible replacement for FC-770. It is also used to replace FC-3283 in some applications. See miscibility statement for more details.

Galden® HT is a line of dielectric fluids with boiling points ranging from 55° C to 270° C. The excellent dielectric properties of these perfluorinated polyethers (PFPE) and their high chemical stability combined with the capacity to operate at very low as well as elevated temperatures, make them the best heat transfer fluids for the aggressive conditions found in semiconductor, electronic, and solar industries.



Galden® HT PFPE:

Property Units HT55 HT70 HT80 HT110  HT135 HT170 HT200 HT230 HT270
Boiling Point °C 55 70 80 110 135 170 200 230 270
Pour Point °C <– 125 <– 110 – 110 – 100 – 100 – 97 – 85 – 77 – 66
Density g/cm3 1.65 1.68 1.69 1.71 1.72 1.77 1.79 1.82 1.85
Kinematic Viscosity cSt 0.45 0.50 0.57 0.77 1.00 1.80 2.40 4.40 14.00
Vapor Pressure torr 225 141 105 17 5.8 0.8 0.2 0.03 <10-2
Specific Heat cal/g·°C 0.23 0.23 0.23 0.23 0.23 0.23 0.23 0.23 0.23
Heat of Vaporization
22 17 17 17 16 16 15 15 15
Refractive Index cal/g 1.280 1.280 1.280 1.280 1.280 1.280 1.281 1.283 1.283
Thermal Expansion cm3/cm3·°C 0.0011 0.0011 0.0011 0.0011 0.0011 0.0011 0.0011 0.0011 0.0011
Surface Tension dyne/cm 14 14 16 16 17 18 19 19 20
Thermal Conductivity W/m·K 0.065 0.065 0.065 0.065 0.065 0.065 0.065 0.065 0.065
Dielectric Strength kV 40 40 40 40 40 40 40 40
Dielectric Constant
1.86 1.86 1.89 1.92 1.92 1.94 1.94 1.94 1.94
Average Molecular Weight g/mol 340 410 430 580 610 760 870 1020 1550
Solubility of Water ppm (wt) < 10 < 10 < 10 < 10 < 10 < 10 < 10 < 10 < 10
Solubility of Air cm3 gas 26 26 26 26 26 26 26 26 26





Solvay/Syensqo® by Solvay/Syensqo®

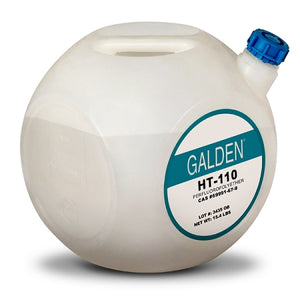

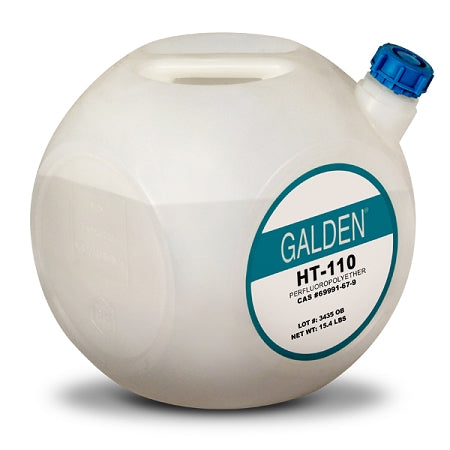

GALDEN® HT-110

20110-5

$1,529.56
$1,529.56
Save 30% when ordering 2 or more!
Save 30% when ordering 2 or more!
Size:
View Technical DatasheetView Safety DatasheetRequest Certificate of Analysis
Shipping
Consider any shipping or transit time offered to you by the carrier as an estimate.

Shipping Policy

Shipping Time -- Most domestic orders received before 2:00PM Central Time will ship the same day, provided the product ordered is in stock. Most orders received after 2:00 PM will ship the next business day. Orders are not processed or shipped on Saturday, Sunday or major US holidays. We cannot guarantee when an order will arrive. Consider any shipping or transit time offered to you by the carrier as an estimate. We encourage you to order in a timely fashion to avoid delays caused by shipping or product availability.
Returns
Return most new, unopened items within 30 days of delivery for a refund minus restocking fee.

Return Policy

You may return most new, unopened items within 30 days of delivery for a refund restocking fee. You should expect to receive your refund within four weeks of giving your package to the return shipper.. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).If you need to return an item, please contact us at (800) 772-8179. We’ll notify you via e-mail of your refund once we’ve received and processed the returned item.

TMC Industries can reclaim your used fluids/solvents/oils, restoring them to like new condition. Our reclamation process typically achieves 99% purity.

Contact us for more details.

Country of Origin: Italy
Schedule B Code: 3904.69.5000
Brand & Series: Galden HT110
MPN:
CAS #: 69991-67-9
MIL-SPEC #: None
