Product information

FC-40 is a non-conductive, thermally and chemically stable fluid ideal for single phase heat transfer fluid applications, especially in the electronics and semiconductor industry for testers, CVD and TFT manufacturing.

Additional Information Clear, colorless, non-conductive, non-flammable, residue free, thermally and chemically stable liquid ideal for use in many heat transfer fluid applications. Its wide liquid range (-57 to 165 deg C) and compatibility makes it well suited for a variety of electronic single and two phase heat transfer applications, including in the semiconductor market for etchers, ion implanters, testers, CVD and TFT manufacturing. Because FC-40 has a narrow boiling range, its composition will change little with time, this keeps fluid loss to a minimum and insures consistent transport properties.

Application Category

Electronic Testing

Heat Transfer

Applications

 Thermal Shock Testing

Semiconductor Cooling

Dielectric Bath

Heat Transfer

Gross Leak Testing

Boiling Point

165°C

Boiling Point Range

160°C-165°C

Density

1.85 g/cm³

Dielectric Strength

>40 (0.1" gap, kV)

Dielectric Strength Range

>35 kV

Fluorocarbon Solubility

Very High

GWP (IPCC 2007)

>5000 (100 yr ITH)

GWP Range

High

Hydrocarbon Solubility

Low

Max Use Temp Range

<250°C

Plastic Elastomer Compatibility

Excellent

Pour Point

-57°C

Product information

FC-40 is a non-conductive, thermally and chemically stable fluid ideal for single phase heat transfer fluid applications, especially in the electronics and semiconductor industry for testers, CVD and TFT manufacturing.

Additional Information Clear, colorless, non-conductive, non-flammable, residue free, thermally and chemically stable liquid ideal for use in many heat transfer fluid applications. Its wide liquid range (-57 to 165 deg C) and compatibility makes it well suited for a variety of electronic single and two phase heat transfer applications, including in the semiconductor market for etchers, ion implanters, testers, CVD and TFT manufacturing. Because FC-40 has a narrow boiling range, its composition will change little with time, this keeps fluid loss to a minimum and insures consistent transport properties.

Application Category

Electronic Testing

Heat Transfer

Applications

 Thermal Shock Testing

Semiconductor Cooling

Dielectric Bath

Heat Transfer

Gross Leak Testing

Boiling Point

165°C

Boiling Point Range

160°C-165°C

Density

1.85 g/cm³

Dielectric Strength

>40 (0.1" gap, kV)

Dielectric Strength Range

>35 kV

Fluorocarbon Solubility

Very High

GWP (IPCC 2007)

>5000 (100 yr ITH)

GWP Range

High

Hydrocarbon Solubility

Low

Max Use Temp Range

<250°C

Plastic Elastomer Compatibility

Excellent

Pour Point

-57°C

3M™ by 3M™

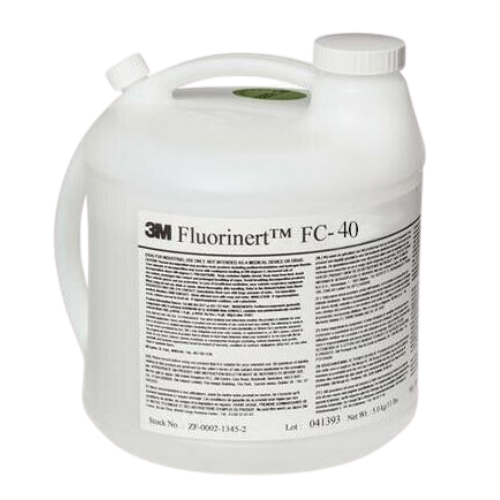

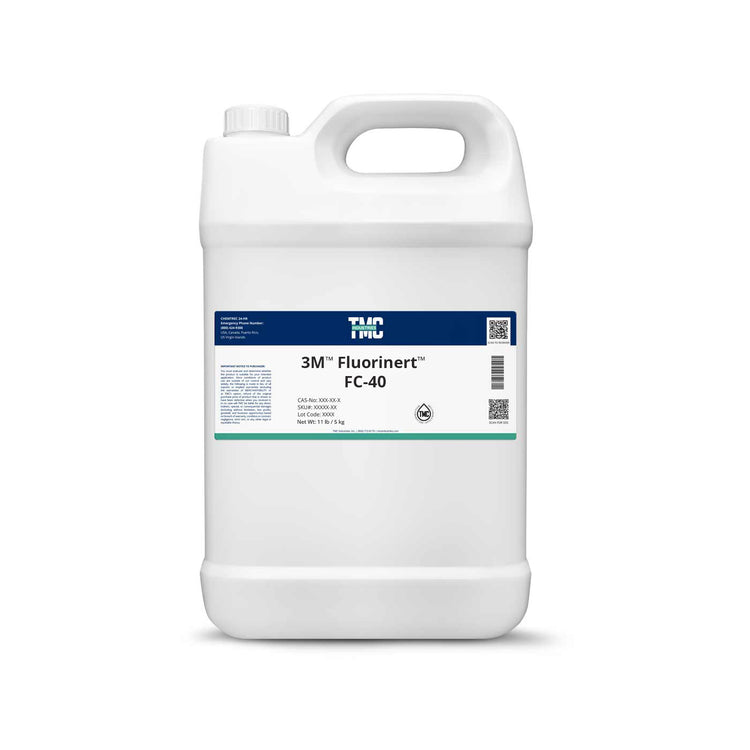

3M FLUORINERT™ FC-40

Translation missing: en.products.product.sku:95001-11

Regular price
$997.00
Sale price
$997.00
Regular price
Size:
View Technical DatasheetView Safety Datasheet
